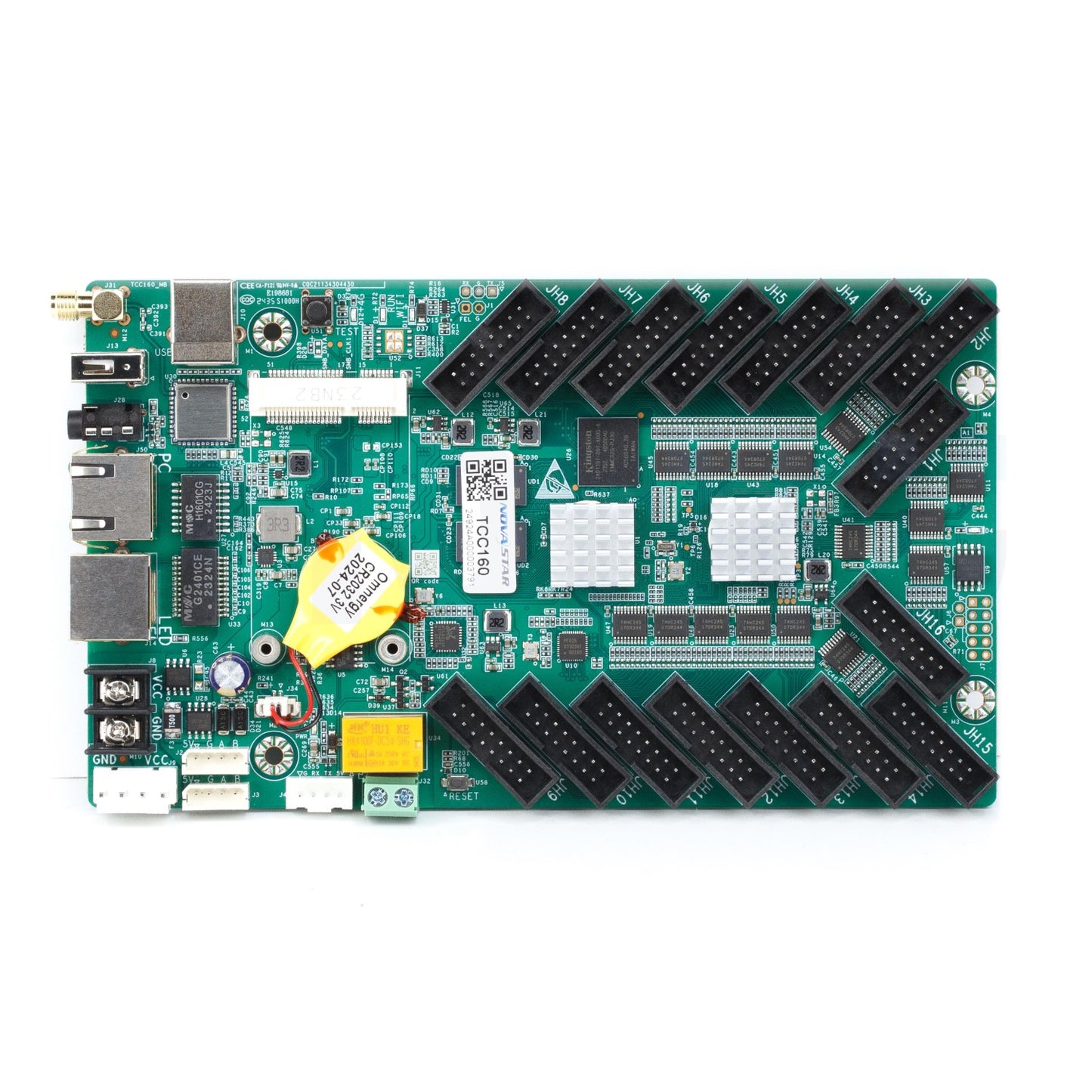

NovaStar TCC160

The NovaStar TCC160 is an asynchronous full-color LED display control card that integrates both sending and receiving capabilities. This design allows users to publish content and manage LED displays using devices such as computers, mobile phones, or tablets. When paired with cloud-based publishing and monitoring platforms, the TCC160 enables remote management of LED displays from any location with internet access.

Key Features:

• Input and Output:
  • For PWM driver ICs, the TCC160 supports a maximum pixel capacity of 512×512 at 60Hz. For general driver ICs, the maximum is 512×384 at 60Hz. The maximum width or height is 2048 pixels, with a total capacity not exceeding 260,000 pixels.
  • When multiple TCC160 units are cascaded, the combined capacity can reach up to 650,000 pixels, maintaining the same maximum width or height.
  • For ultra-long screens, the TCC160 can handle a maximum width of 8192 pixels and a maximum height of 2048 pixels, with a per Ethernet port capacity of up to 650,000 pixels.
  • Includes a stereo audio output.


• Control Interfaces:
  • One USB 2.0 (Type A) port for upgrades, USB playback, storage expansion, and log export.
  • One USB (Type B) port for connecting to a control computer for content publishing and screen control.
  • Two RS485 ports for connecting to light sensors, temperature and humidity sensors, or other modules to implement corresponding functions.


• Performance:
  • Powered by an industrial-grade quad-core 1.4 GHz processor.
  • Equipped with 2 GB of RAM and 32 GB of internal storage.
  • Supports hardware decoding of 4K videos.


• Functionality:
  • Offers versatile control options, allowing content publication and screen management from computers, mobile devices, or tablets, accessible from anywhere at any time.
  • Supports both Wi-Fi AP and Wi-Fi Sta modes simultaneously, enabling direct connections to the TCC160 and internet access via bridging.
  • Capable of ultra-long-screen content playback and synchronous playback across multiple screens.
  • Compatible with 4G modules (sold separately) and supports GPS positioning and time synchronization.
  • Includes relay support with a maximum of DC 30 V, 3 A.

The TCC160's integrated design enhances stability and security, reduces space requirements, simplifies cabling, and is ideal for applications with smaller pixel capacities, such as storefront displays, vehicle-mounted displays, community displays, and lamp-post displays.
