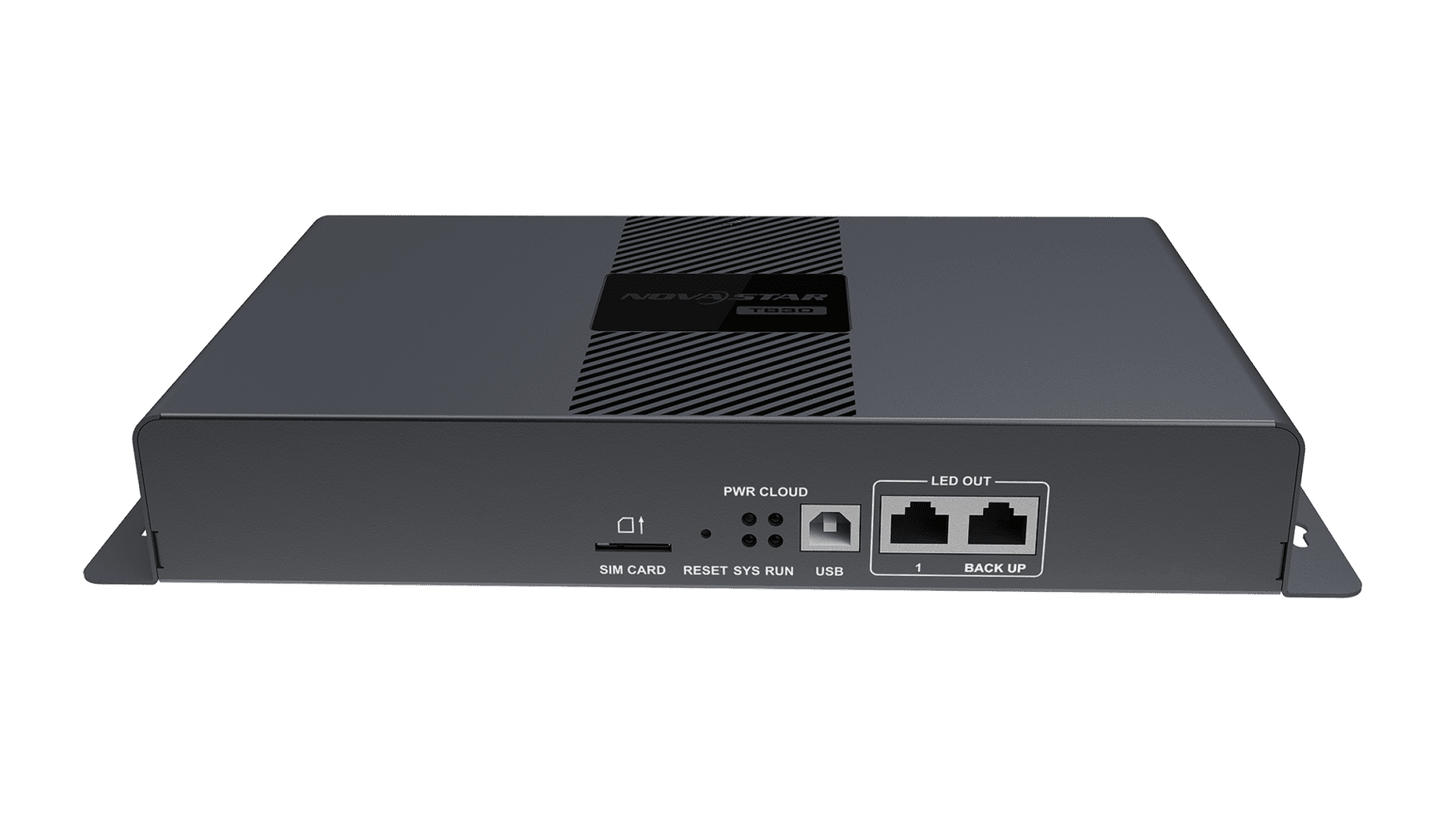

NovaStar TB30

The NovaStar TB30 is a multimedia player designed for full-color LED displays, integrating both playback and sending capabilities. This integration allows users to publish content and control LED displays via computers, mobile devices, or tablets. When paired with NovaStar's cloud-based publishing and monitoring platforms, the TB30 enables users to manage LED displays from any internet-connected device.

Key Features:

• Output:
  • Loading capacity of up to 650,000 pixels
    • Maximum width: 4,096 pixels
    • Maximum height: 4,096 pixels
  • 2× Gigabit Ethernet ports (one primary, one backup)
  • 1× Stereo audio connector


• Control:
  • 1× USB 3.0 (Type A) port for USB playback and firmware upgrades
  • 1× USB (Type B) port for connecting to a control computer
  • 1× Gigabit Ethernet port for content publishing and screen control


• Performance:
  • Quad-core ARM A55 processor at 1.8 GHz
  • 1 GB RAM
  • 16 GB internal storage
  • Supports H.264/H.265 4K@60Hz video decoding
  • Capable of playing 2× 4K, 6× 1080p, 10× 720p, or 20× 360p videos simultaneously


• Functionality:
  • Multiple control methods:
    • Content publishing and screen control via computer, mobile phone, or tablet
    • Remote content publishing and screen monitoring
  • Switchable between Wi-Fi AP and Wi-Fi STA modes
  • Supports synchronous playback across multiple screens using NTP, GPS (with specified 4G module), or RF time synchronization (with specified RF module)
  • Optional support for 4G modules (sold separately)

The TB30 is ideal for applications such as fixed displays, lamp-post displays, chain store displays, advertisement players, mirror displays, retail store displays, door head displays, and shelf displays. Its reliability, ease of use, and intelligent control make it a preferred choice for commercial LED displays and smart city applications.
