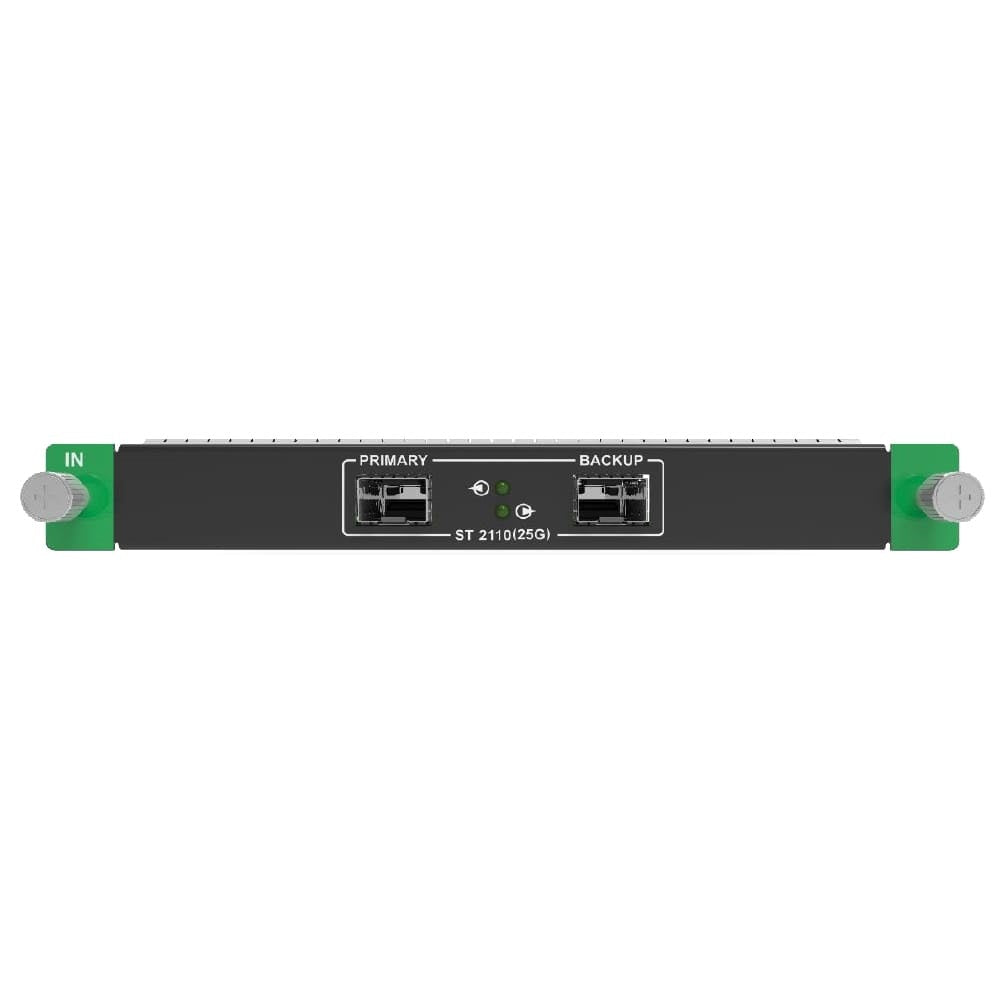

NovaStar Seria MX 1xST2110 (25G) Input Card

The NovaStar MX_1xST2110 (25G) Input Card is designed for integration with NovaStar's MX series LED display controllers, such as the MX6000 Pro and MX2000 Pro. This card enables the reception of high-resolution video signals over IP networks, adhering to the SMPTE ST 2110 standard.

Input Interfaces:

• 1× Primary 25G SFP28 port
• 1× Backup 25G SFP28 port

Supported Standards:

• SMPTE ST 2110 (-10, -20)
• SMPTE 2059 (-1, -2)
• SMPTE 2022-7 (for seamless protection switching)

Supported Resolutions:

• Maximum Resolution:
  • 4096×2160 at 60Hz
  • 8192×1080 at 60Hz
• Minimum Resolution:
  • 800×600 at 60Hz

Frame Rates:

• Supports various frame rates, including:
  • 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60, 71.93, 72, 75, 100, 119.88, and 120 Hz

Color Gamut:

• Supports Rec.709, DCI-P3, and Rec.2020 color spaces

Network Features:

• IP Addressing: Supports both IPv4 DHCP and static IP configurations
• Multicast Protocols: Compatible with IGMPv3 and IGMPv2
• Ethernet Standards: 25 GbE IEEE 802.3cc (25GBASE-LR) and 25 GbE IEEE 802.3by (25GBASE-SR)

Optical Transceiver:

• The card requires an SFP28 optical transceiver, which is not included by default. It is recommended to use the Accelink 25GBASE-LR module for optimal performance.

Control and Management:

• VMP Control: Supports loading video stream configurations via SDP files or direct input. Allows setting resolutions when managing ST 2110 sources in VMP, with support for preset resolutions up to 8192×1080 at 60Hz and custom input resolutions.
• NMOS Management: Facilitates NMOS discovery and control according to IS-04 and IS-05 standards.

Physical Specifications:

• Dimensions: 41 cm × 29 cm × 5 cm
• Weight: 0.8 kg

This input card enhances the flexibility and scalability of the MX series controllers, enabling high-definition video inputs over IP networks for large-scale LED display applications.
