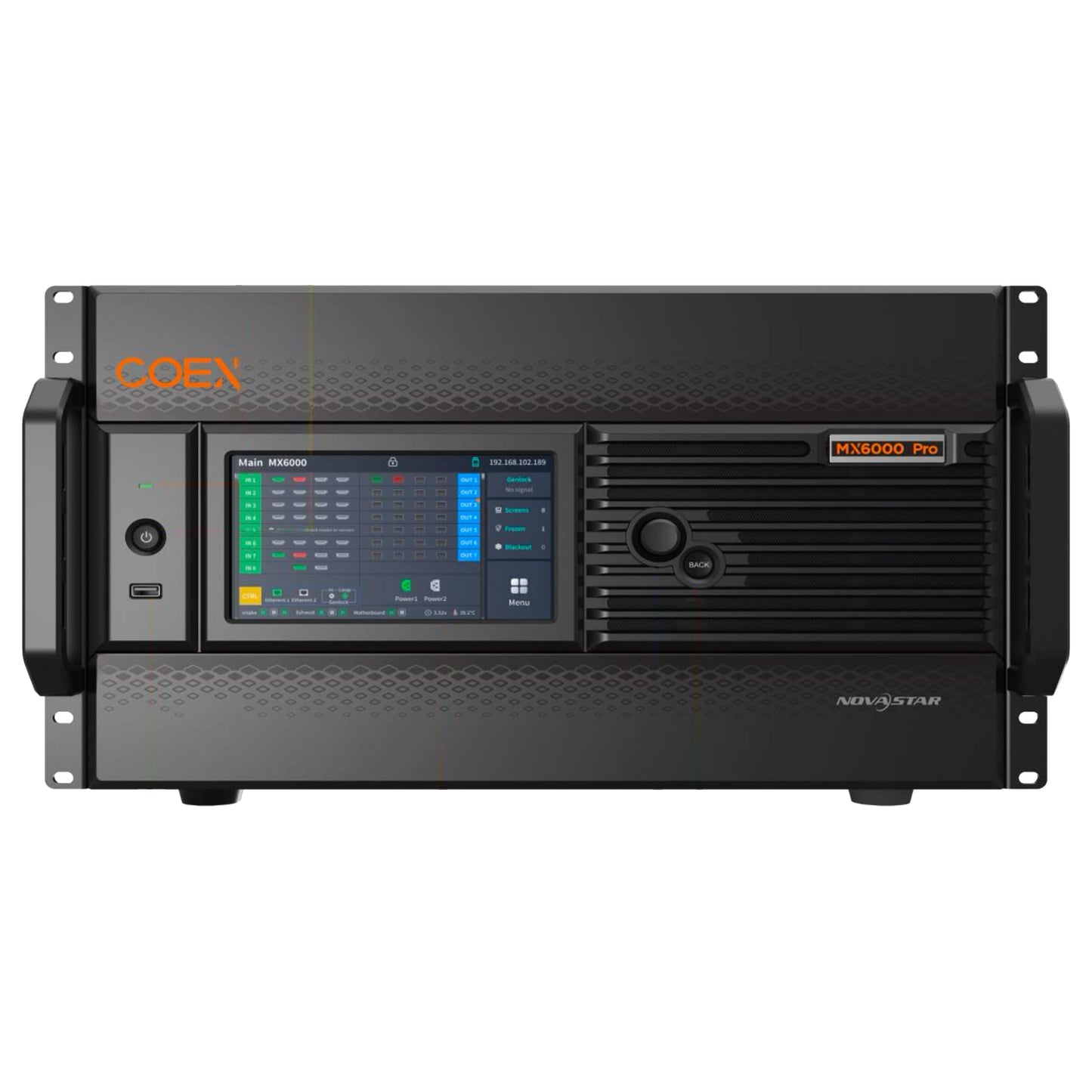

NovaStar MX6000 Pro

The NovaStar MX6000 Pro is a high-performance 8K LED display controller from the COEX series, designed for large-scale professional applications.

NOVASTAR

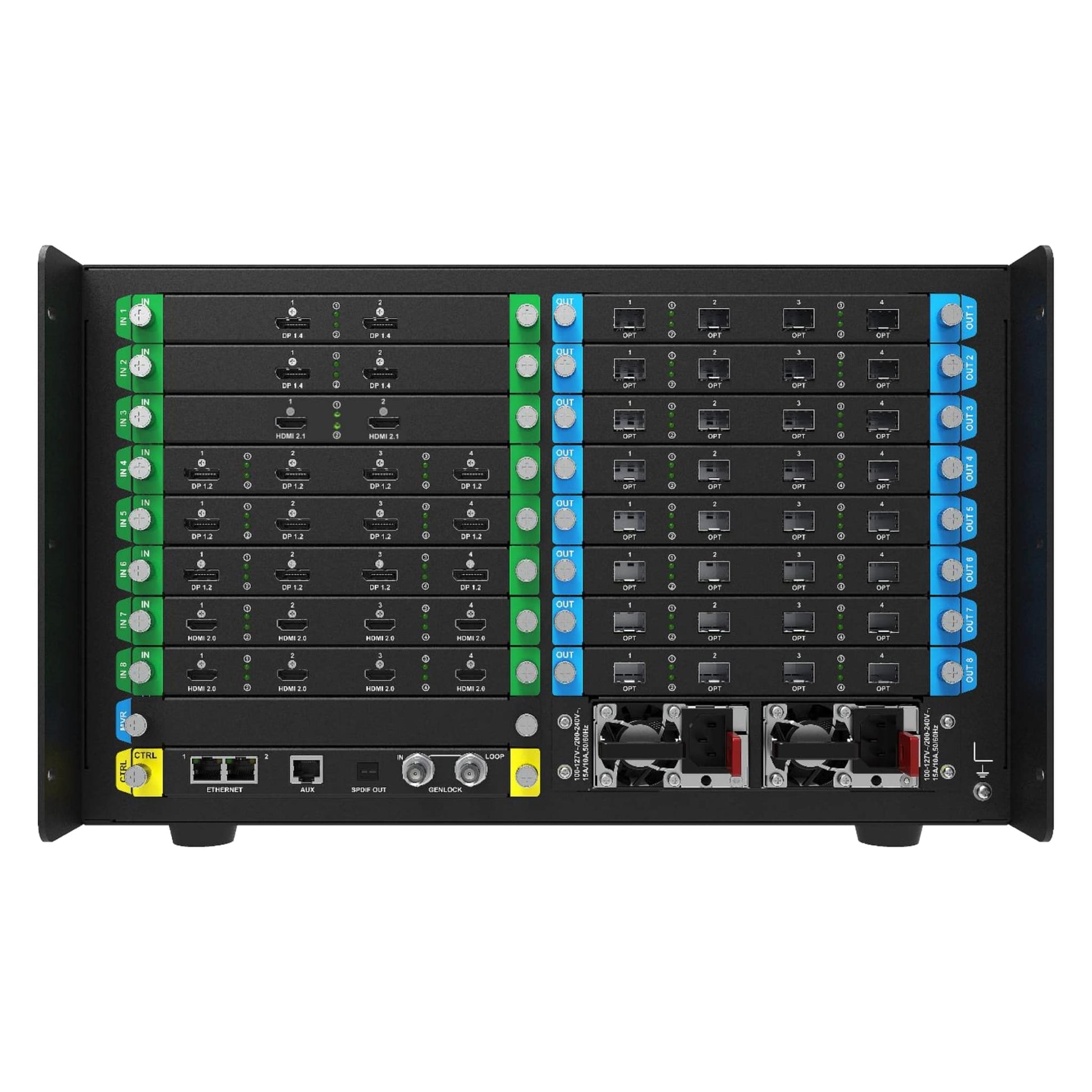

Inputs and Outputs:

• Input Interfaces:
  • 8× Input Card Slots, supporting various configurations:
    • 4K Input Cards:
      • 4× HDMI 2.0
      • 4× DP 1.2
      • 4× 12G-SDI
    • 8K Input Cards:
      • 2× HDMI 2.1
      • 2× DP 1.4
    • VoIP Input Cards:
      • 1× SMPTE ST 2110 (25G)
      • 2× SMPTE ST 2110 (25G)


• Output Interfaces:
  • 8× Output Card Slots, with options for:
    • 1× 40G Fiber Output Card:
      • Works with CVT8-5G fiber converter for 5G transmission, capable of loading 2,951,200 pixels per Ethernet cable.
    • 4× 10G Fiber Output Card:
      • Works with CVT10 fiber converter for 1G transmission, capable of loading 650,000 pixels per Ethernet cable.

Advanced Features:

• High Color Depth: Supports authentic 12-bit video input, ensuring precise brightness control and true-to-life color fidelity.
• High Refresh Rate: Capable of handling frame rates up to 480 Hz, depending on the screen's hardware configuration.
• Real-Time Multi-Screen Scaling: Offers real-time scaling across multiple screens, providing flexibility in various display scenarios.
• Low Latency: Achieves 0-frame latency (less than 1 ms), ensuring immediate response without compromising load capacity.
• High Dynamic Range (HDR): Supports HDR10 and HLG formats, complying with SMPTE ST 2084 and ST 2086 standards for enhanced contrast and color accuracy.
• Modular Design: Features a card-based modular design, allowing for flexible input and output configurations tailored to specific needs.
• Full-Grayscale Calibration: When paired with NovaStar's high-precision calibration system and the C3200 scientific grade camera, it ensures uniformity across all grayscale levels.
• 3D Support: Compatible with specified receiving cards, 3D emitters, and 3D glasses to provide an immersive 3D viewing experience.

Device Controls:

• Vision Management Platform (VMP): Integrates with NovaStar's VMP software for enhanced operation and control.
• Network Protocols: Supports SNMP and Art-Net protocols for versatile control options.
• Cascading Control via Ethernet: Utilizes TCP/IP protocol and star topology, allowing multiple devices to be deployed on the same LAN without the need for external switches or routers.

Physical Specifications:

• Dimensions: 482.6 mm × 282.9 mm × 538.8 mm
• Net Weight: 31 kg (without input and output cards)
• Power Input: 100-240V~, 50/60Hz
• Maximum Power Consumption: 625 W
