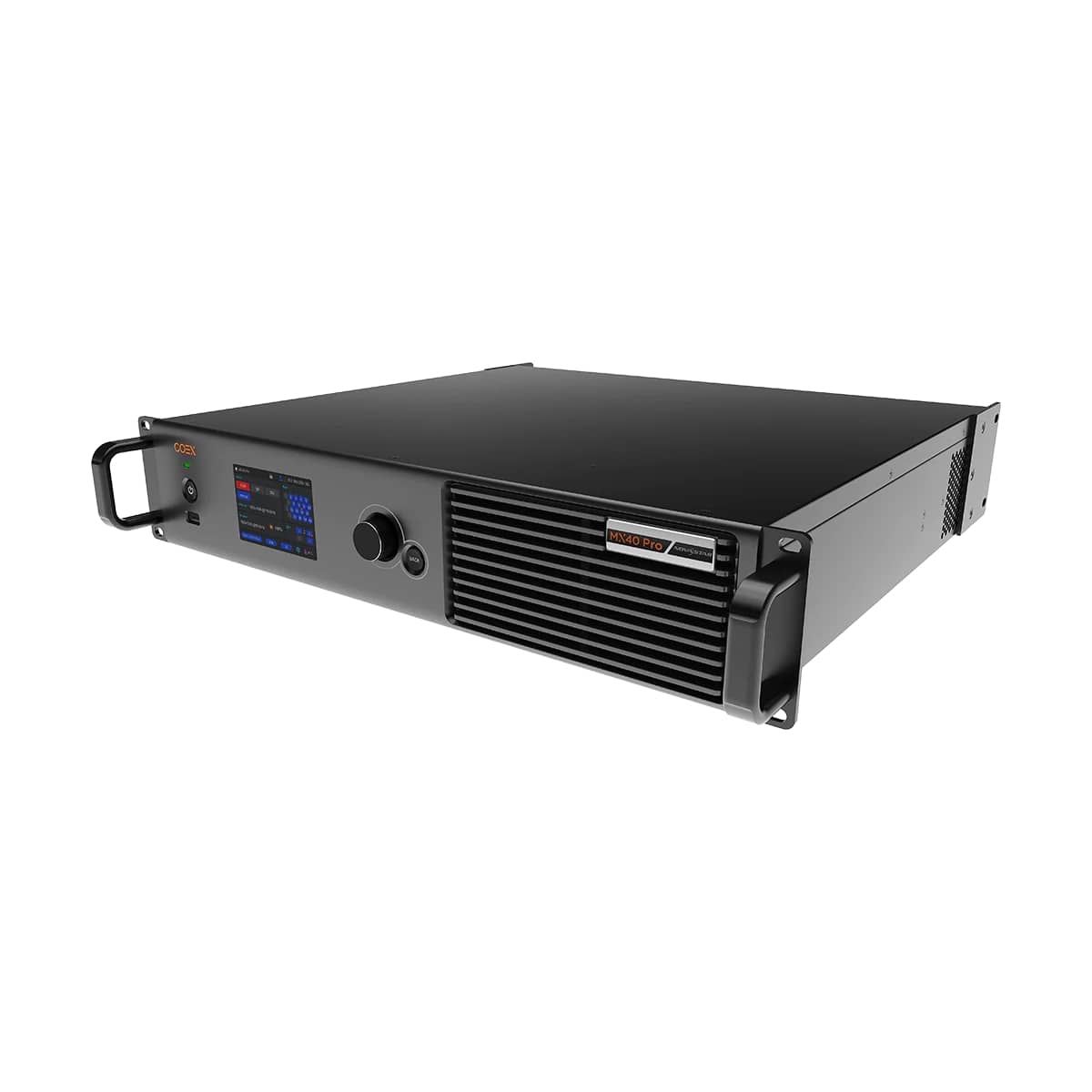

NovaStar MX40 Pro

The NovaStar MX40 Pro is a flagship all-in-one LED display controller from the COEX series, integrating advanced video processing and control capabilities.

NOVASTAR

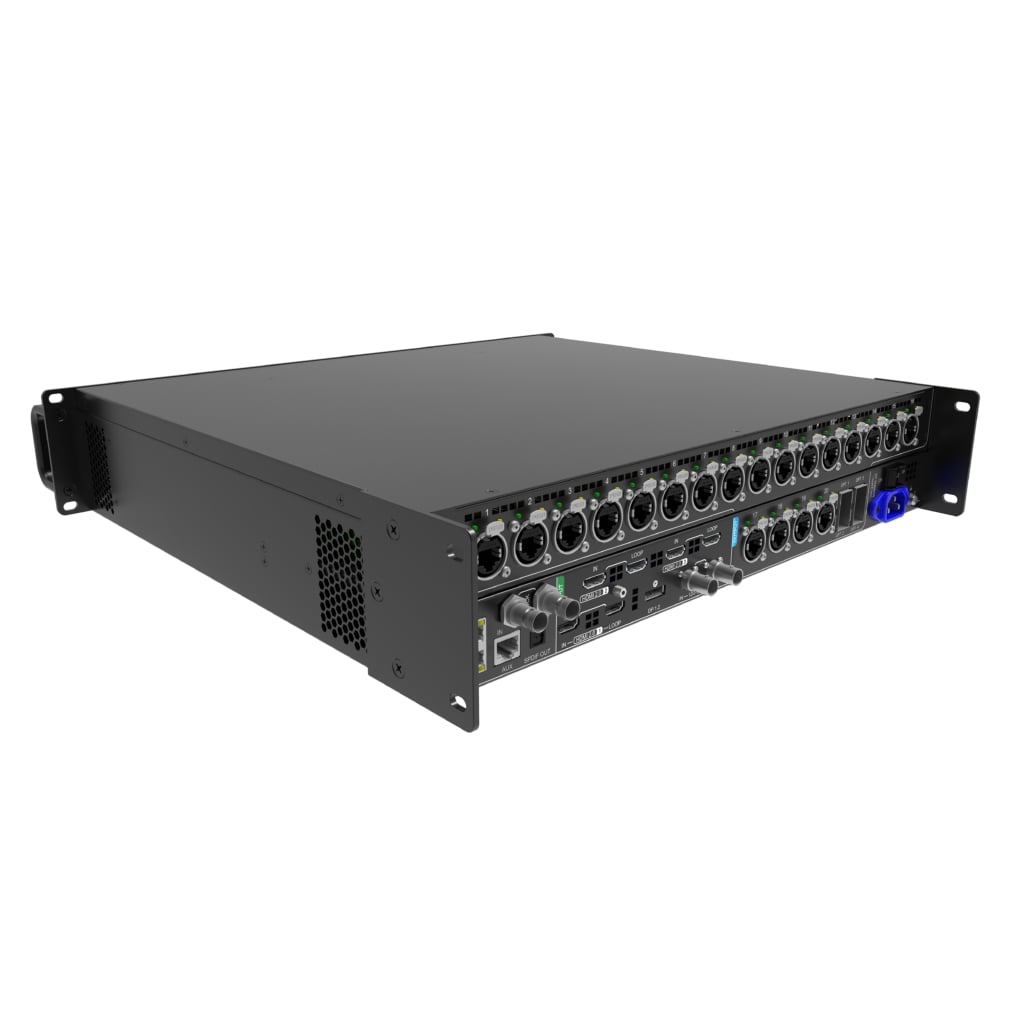

Inputs and Outputs:

• Input Interfaces:
  • 3× HDMI 2.0 (with loop through)
  • 1× DP 1.2
  • 1× 12G-SDI (with loop through)


• Output Interfaces:
  • 20× Gigabit Ethernet ports, supporting a total load capacity of up to 9 million pixels
  • 4× 10G optical ports
  • 1× SPDIF digital audio port (reserved)

Advanced Features:

• Layer Management: Supports up to 4 independent 4K layers with adjustable priority.
• Image Scaling: Offers four scaling modes: custom, pixel-to-pixel, snap to canvas, and fill screen.
• Color Processing:
  • Color Replacement: Allows free replacement of any color in the image without affecting others.
  • 14-Channel Color Correction: Enables precise adjustment of hue, saturation, and brightness for black, white, and 12 derived standard colors.
  • Curves: Adjusts the image RGBW mapping curves.
  • 3D LUT: Supports 17×17×17 3D LUT .cube files for color adjustments.
• Dynamic Booster: Performs real-time analysis and dynamic adjustment of each frame to enhance display contrast and image details, while effectively controlling and reducing power consumption.
• Full Grayscale Calibration: When paired with NovaStar’s high-precision calibration system and the C3200 scientific grade camera, it ensures uniformity across all grayscale levels.
• 3D Support: Compatible with specified receiving cards, 3D emitters, and 3D glasses to provide an immersive 3D viewing experience.
• HDR Support: Complies with HDR10 (SMPTE ST 2084 and ST 2086 standards) and HLG formats.
• Low Latency: In Send-Only Controller mode, the latency is less than 1 ms; in All-In-One Controller mode, the latency is 1 frame.
• Frame Rate Adaptation: Automatically adapts to various video input frame rates, including decimal rates, with fine-tuning available in 0.01 Hz increments.
• Display System Monitoring: Monitors device and screen status, actively reporting any faults or alarms.

Device Controls:

• VMP Software Compatibility: Integrates with NovaStar's Vision Management Platform (VMP) for enhanced operation and control.
• SNMP and Art-Net Protocols: Supports these protocols for versatile control options.
• Cascading Control via Ethernet: Supports TCP/IP protocol and star topology, allowing multiple devices to be deployed on the same LAN without the need for external switches or routers.

Physical Specifications:

• Dimensions: 482.6 mm × 94.2 mm × 467.0 mm
• Net Weight: 7.5 kg
• Power Input: 100-240V~, 50/60Hz, 2A
• Maximum Power Consumption: 70 W
