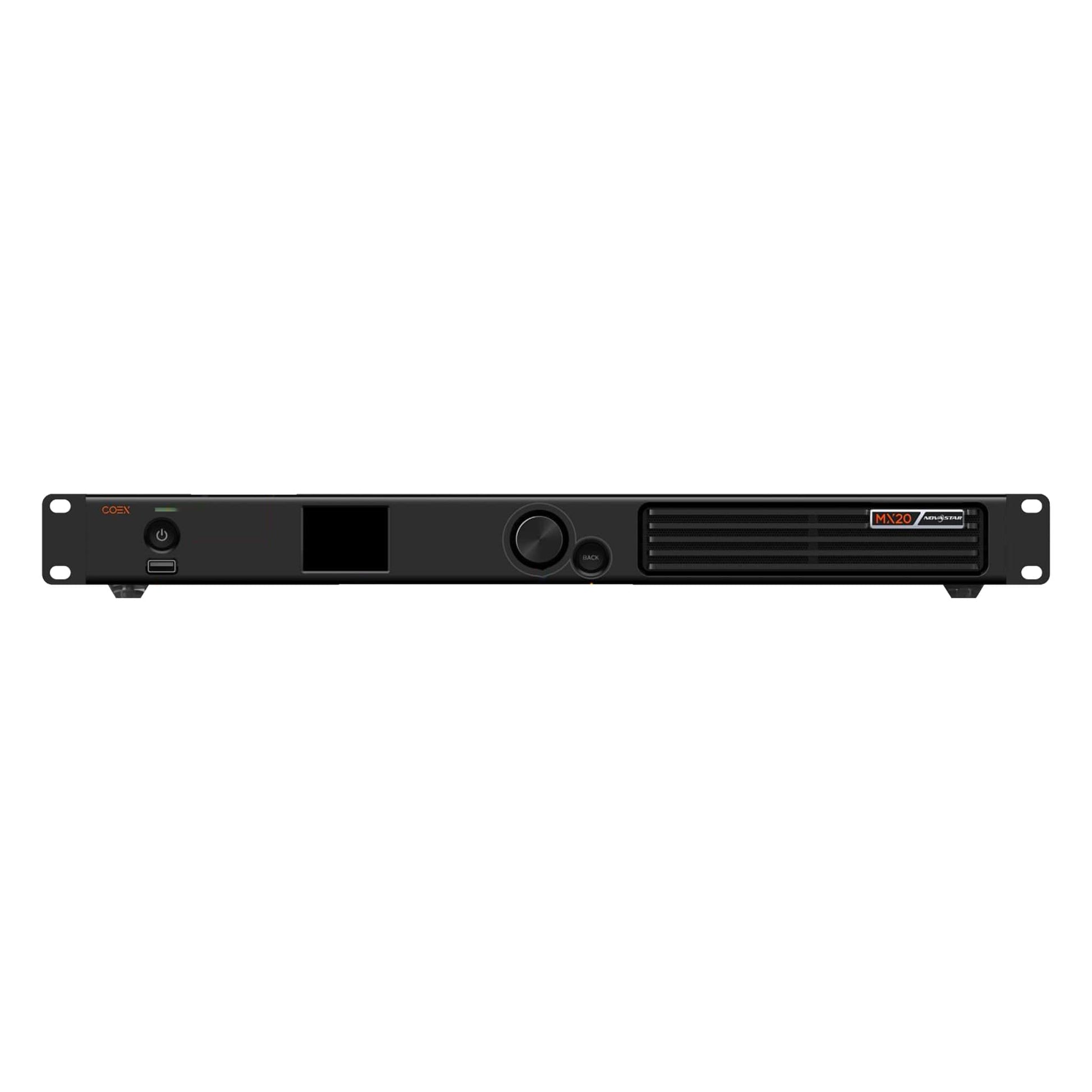

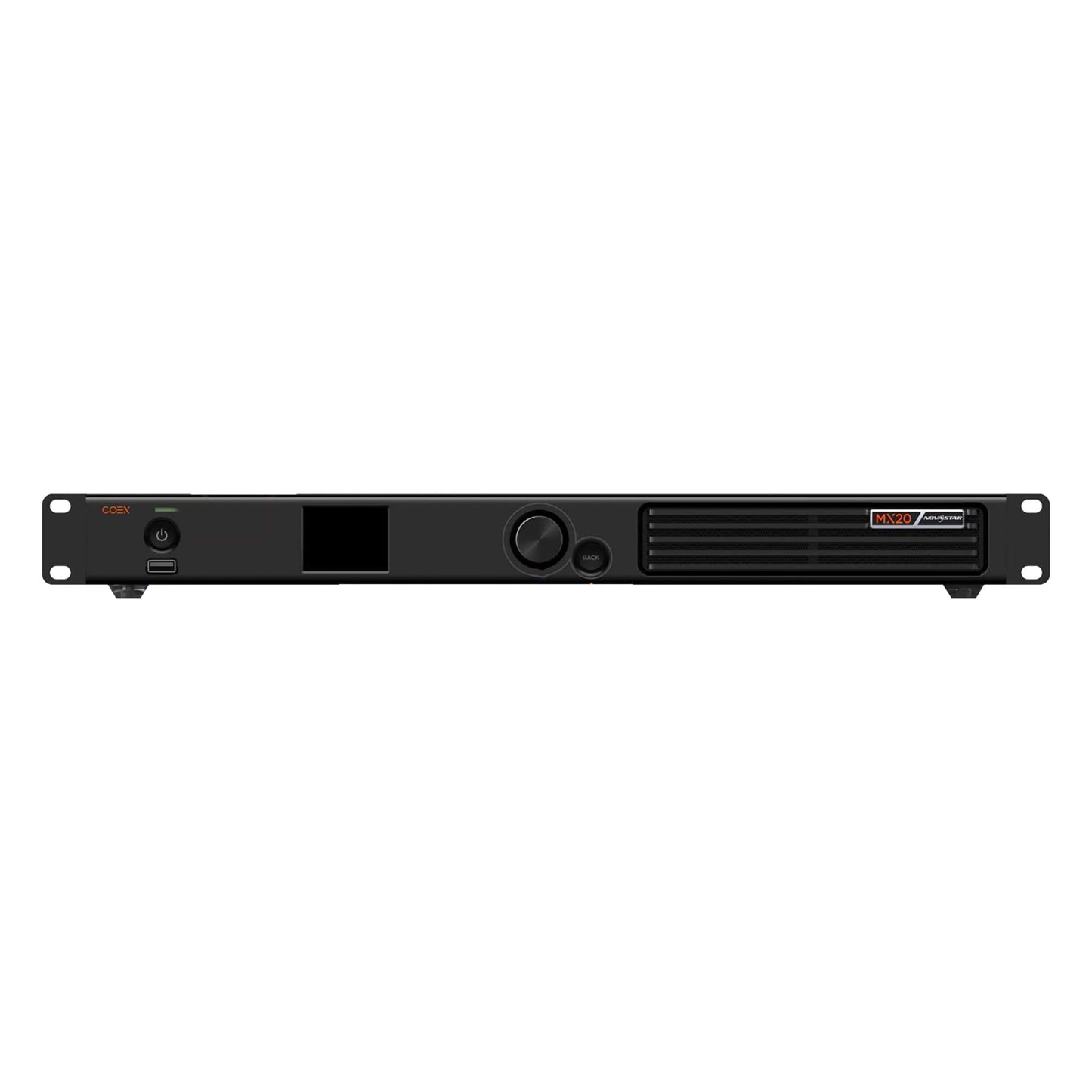

NovaStar MX20

The NovaStar MX20 is an all-in-one LED display controller from the COEX series, integrating video processing and control functionalities.

NOVASTAR

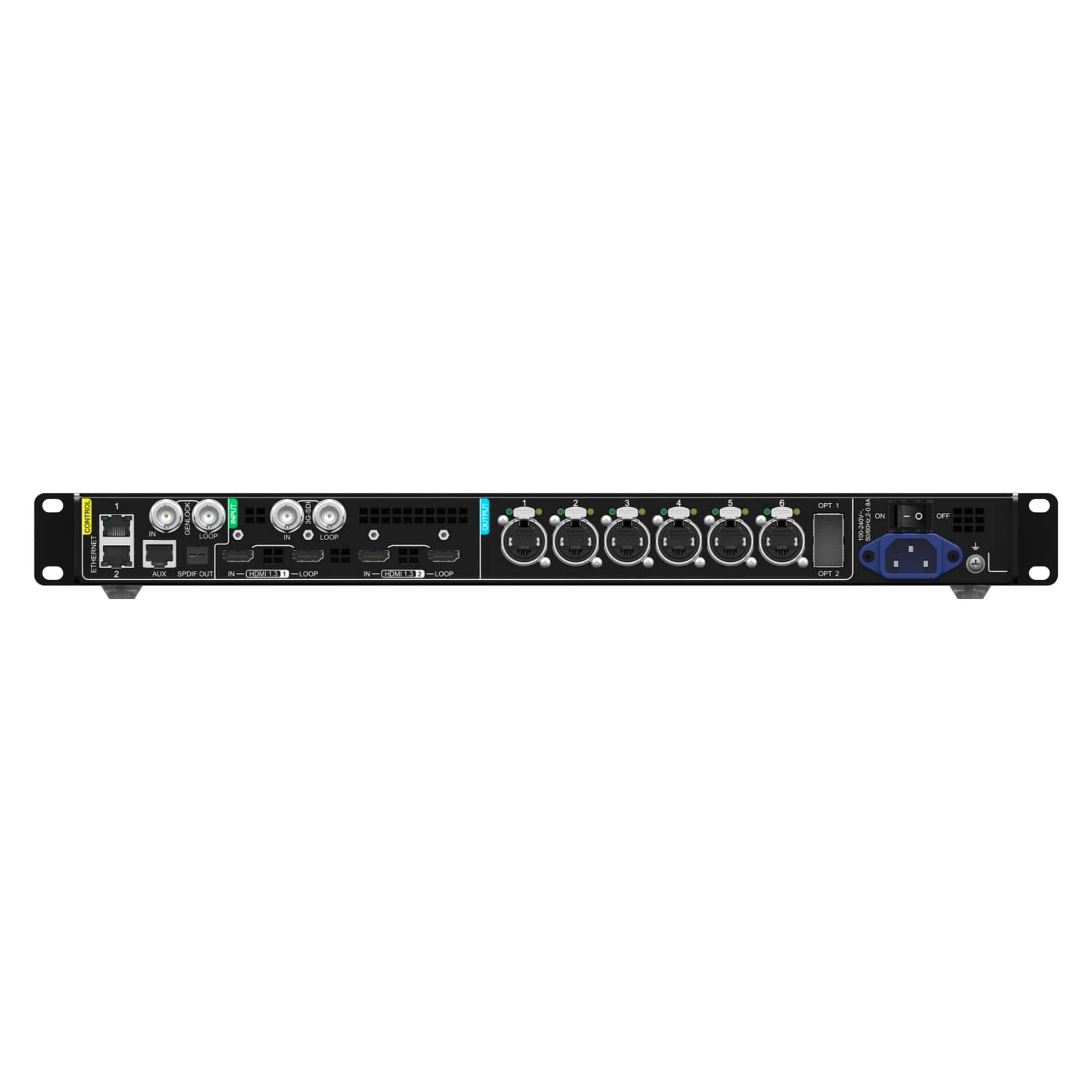

Inputs and Outputs:

• Input Interfaces:
  • 2× HDMI 1.3 (with loop through)
  • 1× 3G-SDI (with loop through)
• Output Interfaces:
  • 6× Gigabit Ethernet ports, supporting a total load capacity of up to 3.9 million pixels
  • 2× 10G optical ports

Advanced Features:

• Layer Management: Supports up to 3 independent layers with adjustable priority.
• Image Scaling: Offers four scaling modes: custom, pixel-to-pixel, snap to canvas, and fill screen.
• 14-Channel Color Correction: Allows precise adjustment of hue, saturation, and brightness for black, white, and 12 derived standard colors.
• Full-Grayscale Calibration: When paired with NovaStar’s high-precision calibration system and the C3200 scientific grade camera, it ensures uniformity across all grayscale levels.
• Low Latency: In Send-Only Controller mode, the latency is less than 1 ms; in All-In-One Controller mode, the latency is 1 frame.
• Frame Rate Adaptation: Automatically adapts to various video input frame rates, including decimal rates, with fine-tuning available in 0.01 Hz increments.
• Display System Monitoring: Monitors device and screen status, actively reporting any faults or alarms.

Device Controls:

• VMP Software Compatibility: Integrates with NovaStar's Vision Management Platform (VMP) for enhanced operation and control.
• SNMP and Art-Net Protocols: Supports these protocols for versatile control options.
• Cascading Control via Ethernet: Supports TCP/IP protocol and star topology, allowing multiple devices to be deployed on the same LAN without the need for external switches or routers.

Physical Specifications:

• Dimensions: 482.6 mm × 49.9 mm × 384.0 mm
• Net Weight: 4.5 kg
• Power Input: 100-240V~, 50/60Hz, 2-0.8A
• Maximum Power Consumption: 50 W
