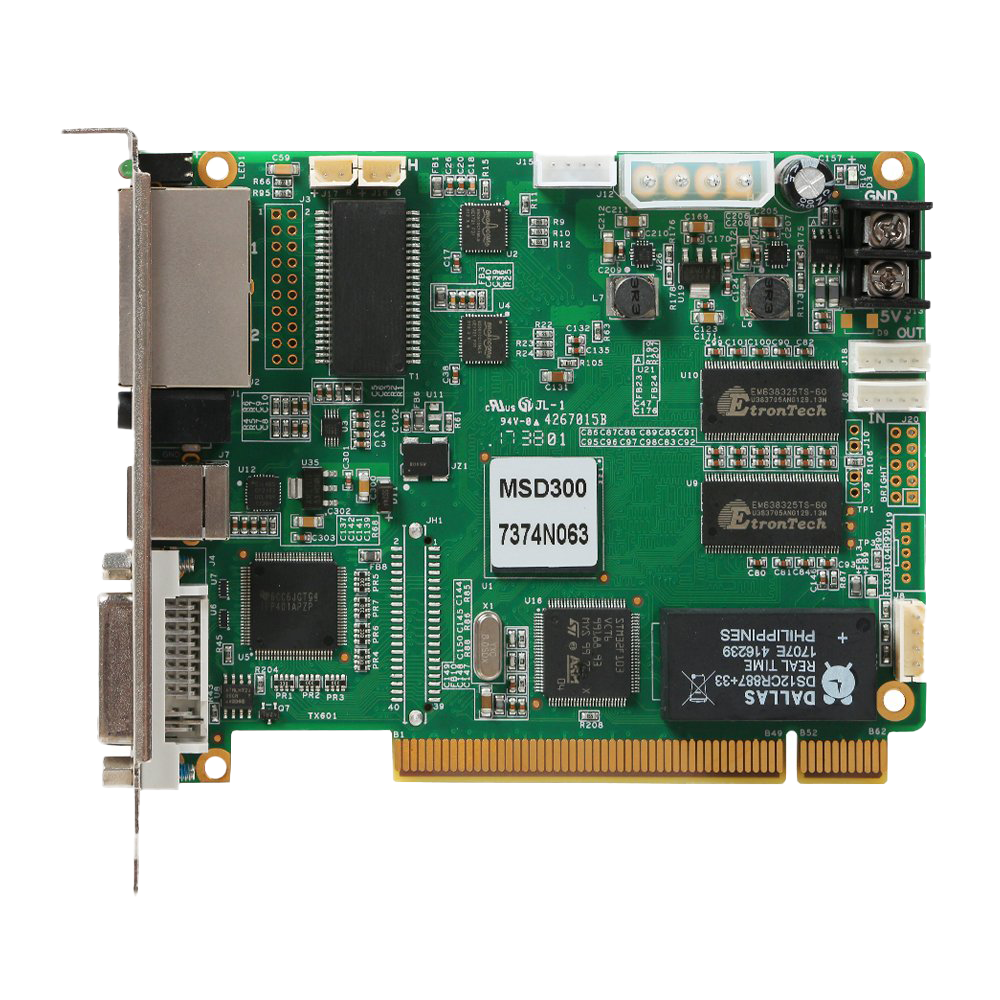

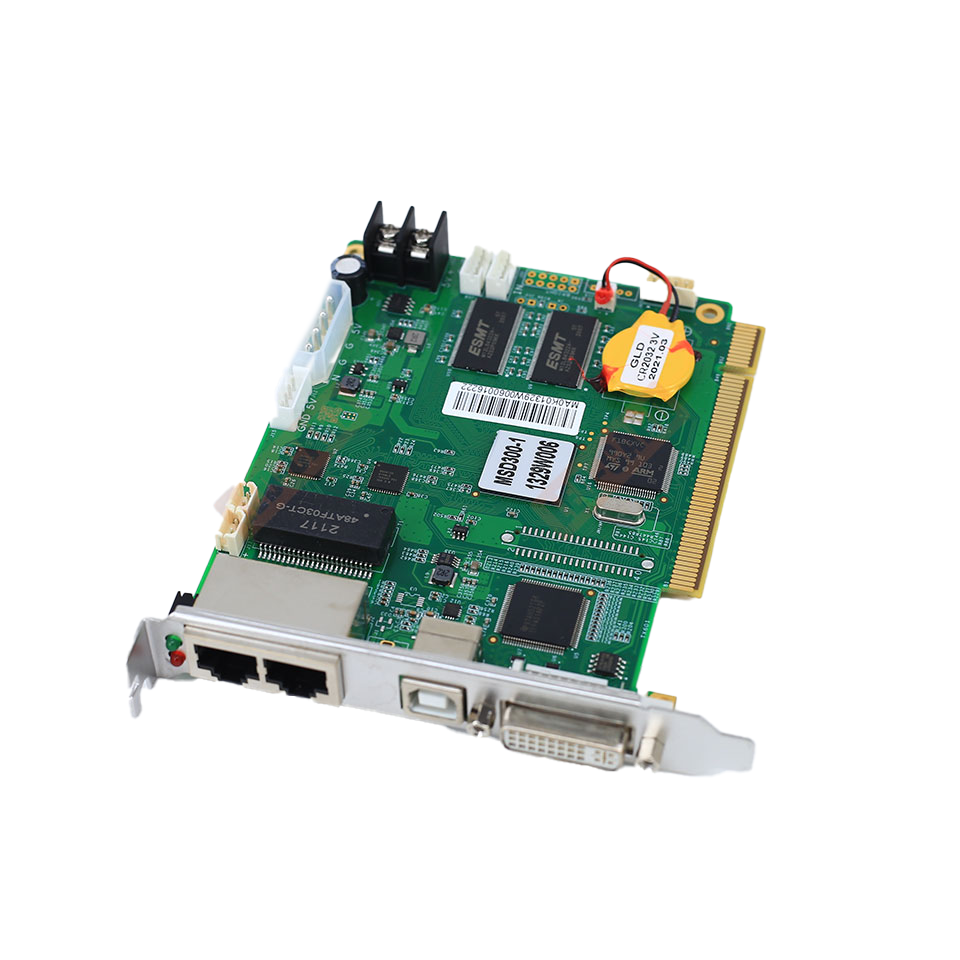

The NovaStar MSD300-1 is engineered to support high-quality video and audio transmission for LED displays. It features a single-link DVI input and dual Gigabit Ethernet outputs, accommodating input resolutions up to 1920×1200 at 60Hz.

NOVASTAR

Key Features:

Connectors:

  • Input:
    • 1× Single-Link DVI Input
    • 1× Audio Input

  • Output:
    • 2× Gigabit Ethernet Ports

  • Control and Functionality:
    • 1× Type-B USB Port (for PC connection)
    • 2× UART Ports (for device cascading; up to 20 devices)
    • 1× Light Sensor Connector

Compatibility:

  • Input Resolution:
    • Supports up to 1920×1200 at 60Hz
    • Custom resolutions supported with a maximum width of 3840 pixels and a maximum height of 3840 pixels

  • Video Formats:
    • 8-bit RGB 4:4:4


Specifications:

  • Electrical:
    • Input Voltage: DC 3.3V to 5.5V
    • Rated Current: 0.6A
    • Power Consumption: Approximately 3W

  • Operating Environment:
    • Temperature: -20°C to +75°C
    • Humidity: 10% RH to 90% RH, non-condensing

  • Physical:
    • Dimensions: 138.8 mm × 120.6 mm × 22.0 mm
    • Net Weight: 104.3 g
