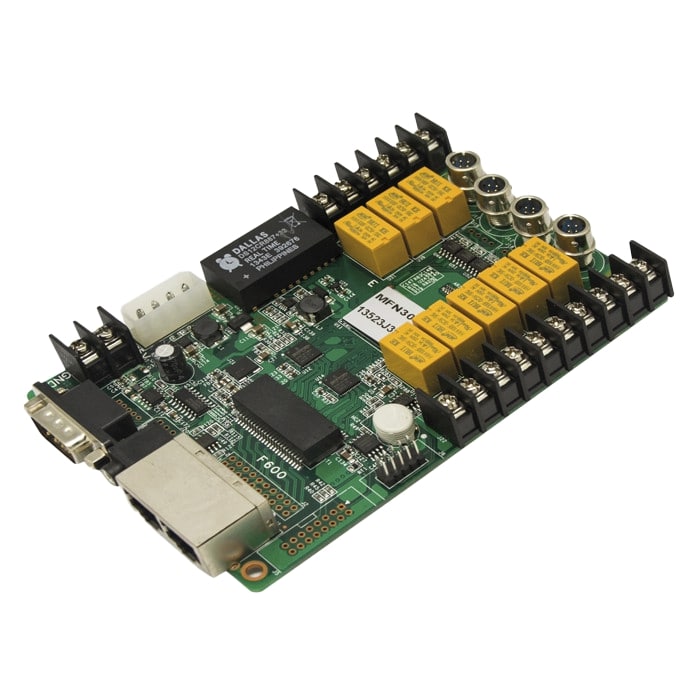

NovaStar MFN300

The NovaStar MFN300 is a multifunction card designed to enhance LED display systems by providing various auxiliary functions. It offers multiple connectivity options and supports several monitoring and control features to optimize display performance.

NOVASTAR

Key Features:

• Communication Interfaces:
  • RS232 serial port
  • Gigabit Ethernet port
• Sensor Connectivity:
  • Supports up to four light sensors for automatic brightness adjustment
  • Temperature and humidity module connection for environmental monitoring
• Power Management:
  • Eight power switch control channels, allowing for remote power management of connected devices
• Audio Output:
  • Equipped with a 3.5 mm audio output port
• Timer Function:
  • Includes a timer feature that can replace traditional timers and delay devices

Specifications:

• Power Supply:
  • Input Voltage: 4.5–5.5 V DC
  • Rated Current: 0.38 A
• Environmental Conditions:
  • Operating Temperature: –20°C to +75°C
  • Operating Humidity: 0% to 99% RH, non-condensing
• Physical Dimensions:
  • Size: 144 mm × 92 mm × 20 mm
  • Weight: Approximately 164.4 g

The MFN300 can be integrated into the signal chain at various points, including between the sending card (or controller) and the first receiving card, between receiving cards, or after the last receiving card. This flexibility allows for seamless incorporation into existing LED display setups.
