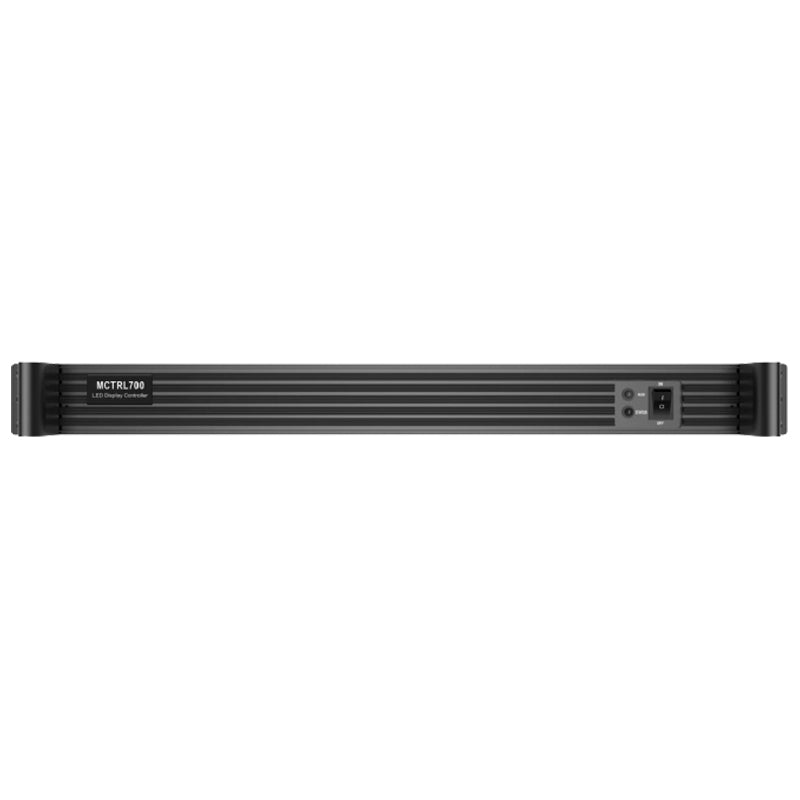

NovaStar MCTRL700

The NovaStar MCTRL700 is an LED display controller designed for both rental and fixed installations, including concerts, live broadcasts, monitoring centers, and sports arenas. It supports a single-unit loading capacity of up to 1920×1200 at 60Hz.

Key Features:

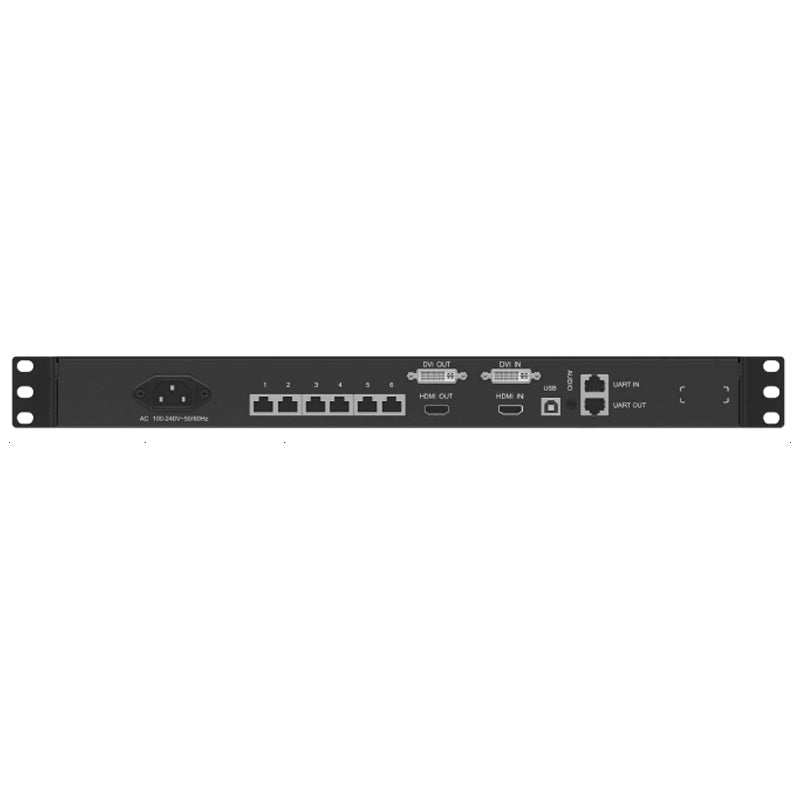

• Input Options:
  • 1× SL-DVI input
  • 1× HDMI 1.3 input
  • 1× 3.5mm audio input


• Output:
  • 6× RJ45 Gigabit Ethernet ports, each supporting up to 650,000 pixels
  • 1× SL-DVI loop output
  • 1× HDMI 1.3 loop output


• Control and Connectivity:
  • 1× Type-B USB control port for PC connection
  • UART IN and OUT ports for cascading multiple units (up to 20 devices)


• Supported Resolutions:
  • Standard: Up to 1920×1200 at 60Hz
  • Custom resolutions supported with a maximum width of 3840 pixels or a maximum height of 3840 pixels


• Additional Features:
  • Supports 8-bit RGB 4:4:4 video format
  • HDCP 1.4 compliant
  • Supports pixel-level brightness and chroma calibration for improved image quality

Physical Specifications:

• Dimensions: 482.0 mm × 268.5 mm × 44.4 mm
• Weight: Approximately 2.6 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Power Consumption: 12 W
• Operating Temperature: -20°C to +60°C
• Humidity: 10% RH to 90% RH, non-condensing
