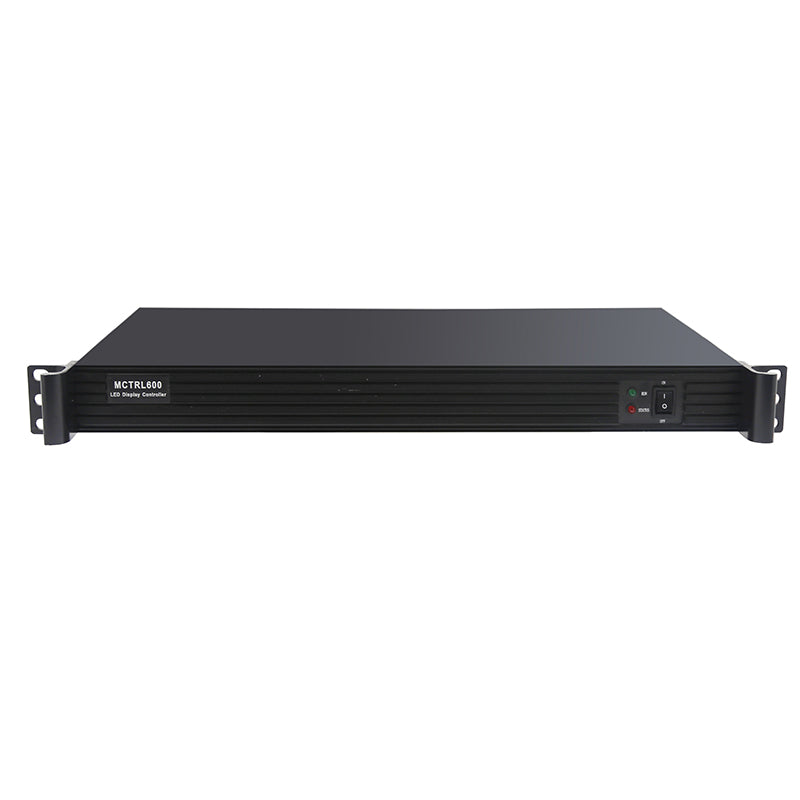

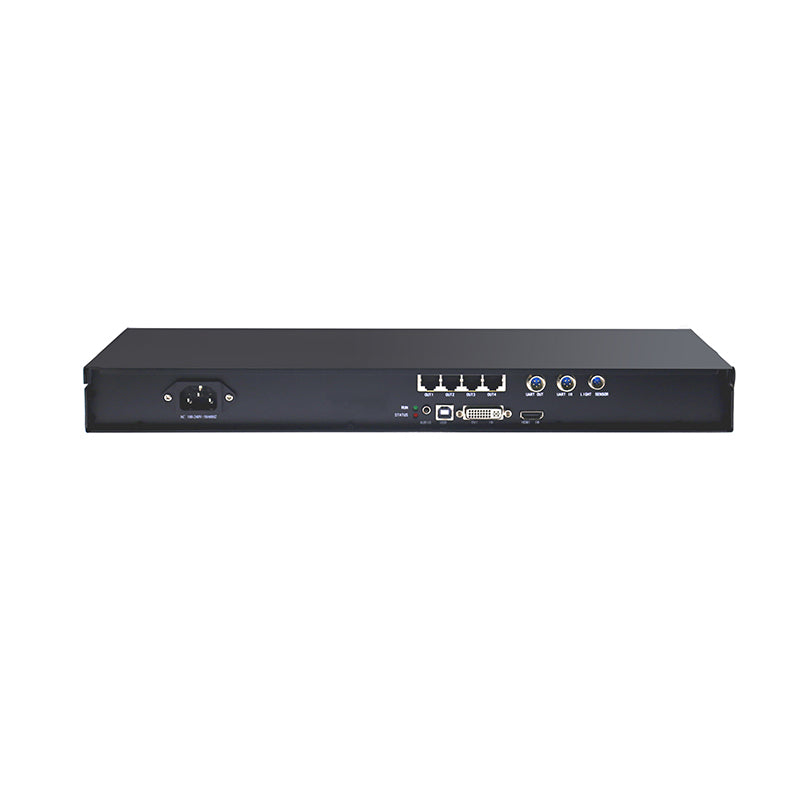

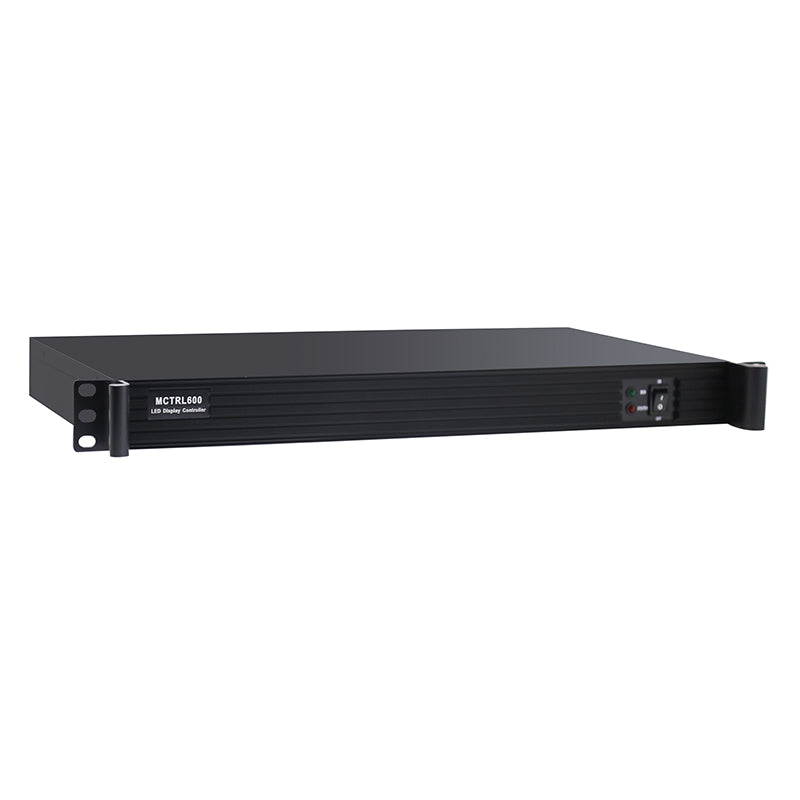

NovaStar MCTRL600

NovaStar MCTRL600

€260,95 EUR
€260,95 EUR
Sale Sold out
Shipping calculated at checkout.
Livrare imediata

The NovaStar MCTRL600 is an LED display controller designed for both rental and fixed installations, such as stage broadcasts, monitoring centers, and sports arenas. It supports a single-unit loading capacity of up to 1920×1200 at 60Hz.

NOVASTAR



Key Features:

  • Input Options:
    • 1× DVI input
    • 1× HDMI 1.3 input
    • 1× audio input

  • Output:
    • 4× RJ45 Gigabit Ethernet ports, each supporting up to 650,000 pixels

  • Control and Connectivity:
    • 1× type-B USB control port for PC connection
    • UART IN and OUT ports for cascading multiple units (up to 20 devices)
    • Light sensor connector for automatic brightness adjustment

  • Supported Resolutions:
    • Standard: Up to 1920×1200 at 60Hz
    • Custom resolutions supported with a maximum width of 3840 pixels or a maximum height of 3840 pixels

  • Additional Features:
    • Supports 8-bit, 10-bit, and 12-bit color depths
    • Compatible with various video formats, including RGB, YCrCb4:2:2, and YCrCb4:4:4
    • HDCP 1.4 compliant
    • Supports pixel-level brightness and chroma calibration for improved image quality

Physical Specifications:

  • Dimensions: 482.0 mm × 268.5 mm × 44.4 mm
  • Weight: Approximately 2.5 kg
  • Power Supply: AC 100–240 V, 50/60 Hz
  • Operating Temperature: -20°C to +60°C
  • Humidity: 10% RH to 90% RH, non-condensing
View full details

NovaStar Partener

LEDROM is the official distributor of Novastar in Romania, specializing in the integration of LED screen projects and the organization of NCE training and certifications. The collaboration with Novastar, a global leader in control solutions for LED screens, allows LEDROM to offer advanced and customized solutions for various applications.

As a project integrator, LEDROM handles the full implementation of LED display systems, from consulting and design to installation and maintenance. This approach ensures clients receive efficient, high-quality solutions tailored to the specific needs of each project. LEDROM organizes NCE (NovaStar Certified Engineer) training and certifications aimed at professionals in the audiovisual field. These courses provide in-depth knowledge about NovaStar products and technologies, contributing to the development of participants' technical skills and ensuring the correct and efficient implementation of LED screen systems.
