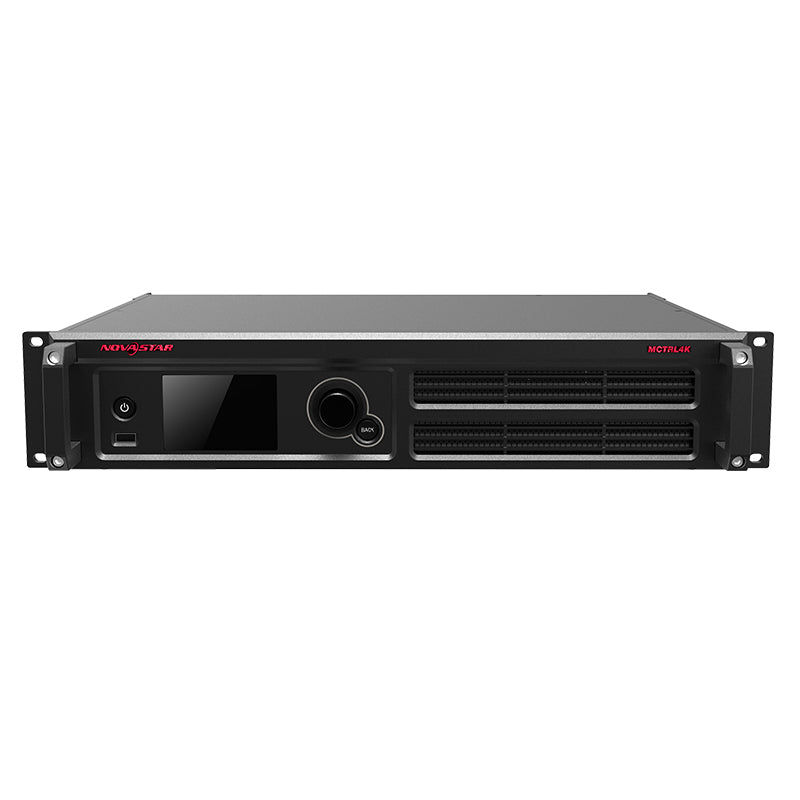

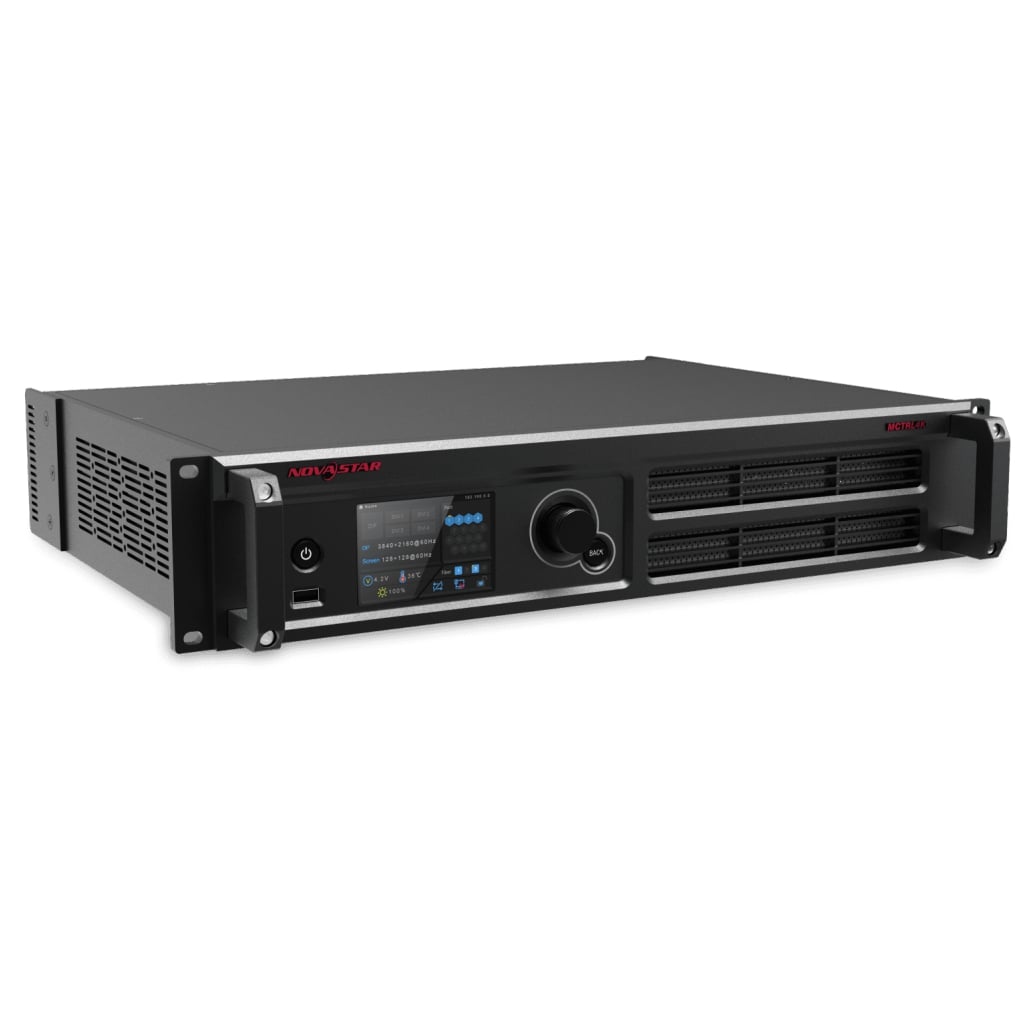

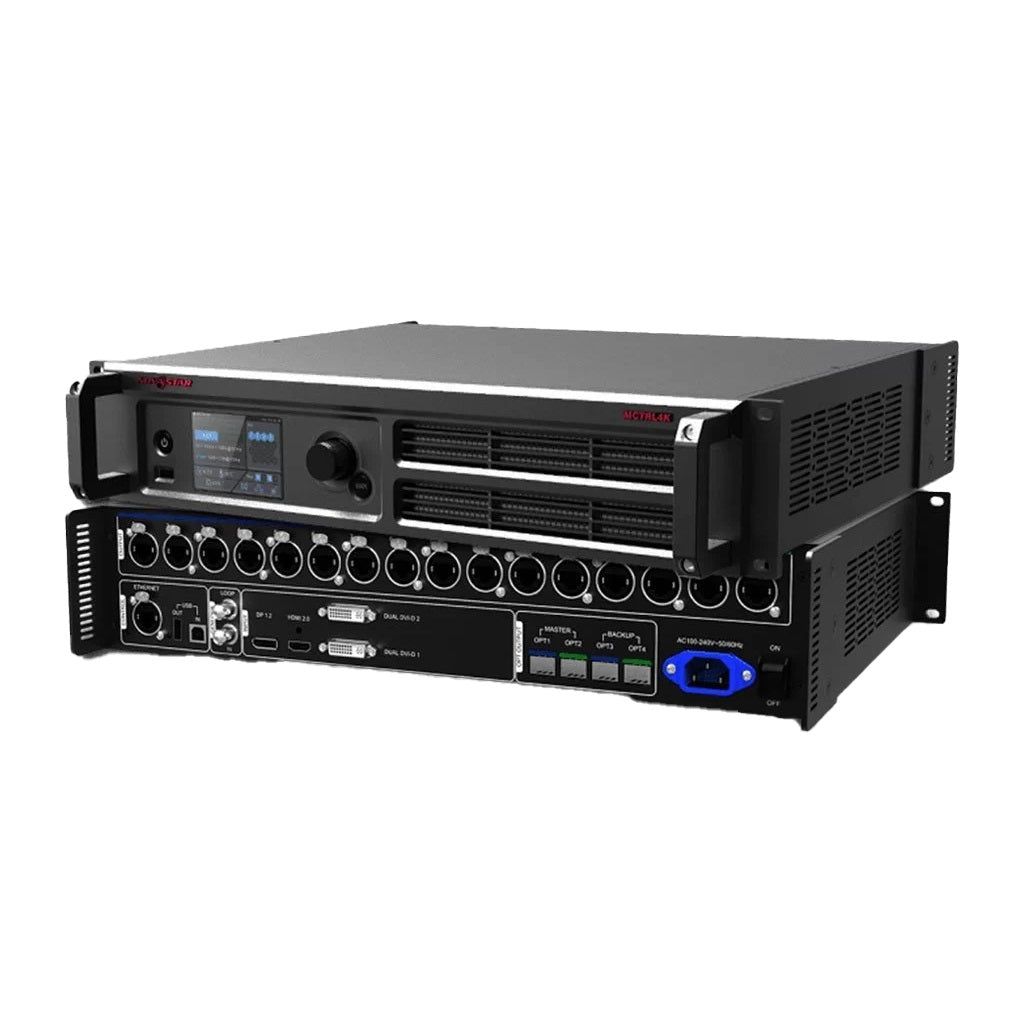

NovaStar MCTRL4K

The NovaStar MCTRL4K is a high-performance LED display controller designed to handle ultra-large resolutions, making it ideal for applications such as concerts, live events, security monitoring, and sports centers. It supports a loading capacity of up to 4096×2160 at 60Hz and offers advanced features to enhance image quality and system performance.

Key Features:

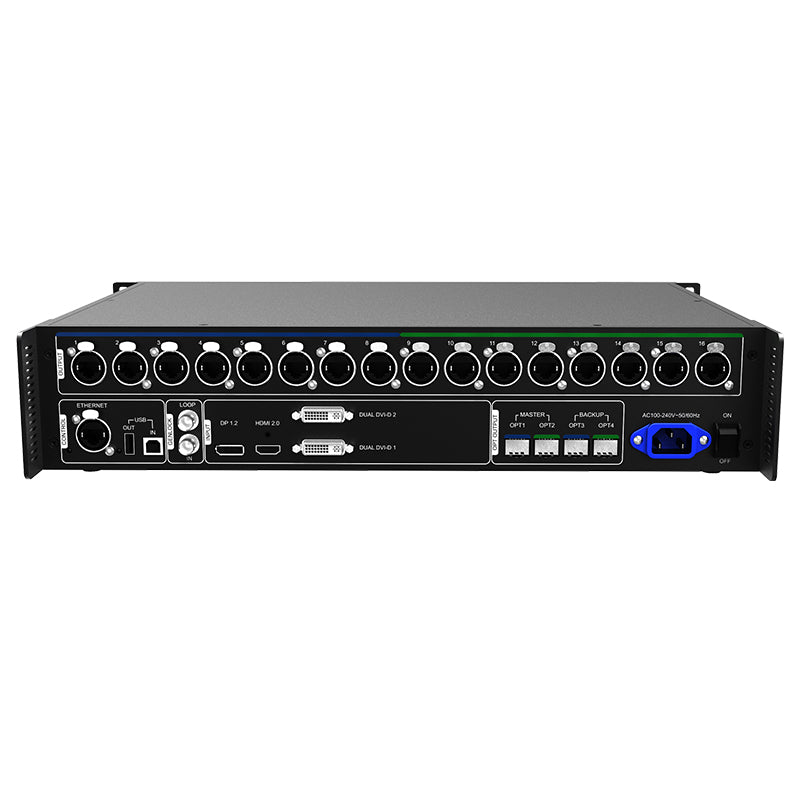

• Input Options:
  • 1× DP 1.2
  • 1× HDMI 2.0
  • 2× Dual-Link DVI


• Output:
  • 16× Neutrik Gigabit Ethernet ports
  • 4× 10G optical ports


• Supported Resolutions:
  • Standard: Up to 4096×2160 at 60Hz
  • Custom resolutions supported with a maximum width or height of 7680 pixels


• Advanced Features:
  • Supports HDR10 and HLG for high dynamic range display
  • Low latency with less than 1 ms delay
  • Supports 3D functionality when paired with the EMT200 3D emitter and 3D glasses
  • Individual gamma adjustment for RGB to improve image uniformity
  • Pixel-level brightness and chroma calibration for enhanced image quality


• Control and Connectivity:
  • 1× Ethernet port for network control
  • 1× USB Type-B port for PC connection
  • 1× USB Type-A port for cascading multiple units
  • Genlock IN and LOOP connectors for synchronization

Physical Specifications:

• Dimensions: 482.6 mm × 372.0 mm × 88.1 mm
• Weight: Approximately 4.6 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Operating Temperature: -20°C to +60°C
• Humidity: 10% RH to 90% RH, non-condensing
