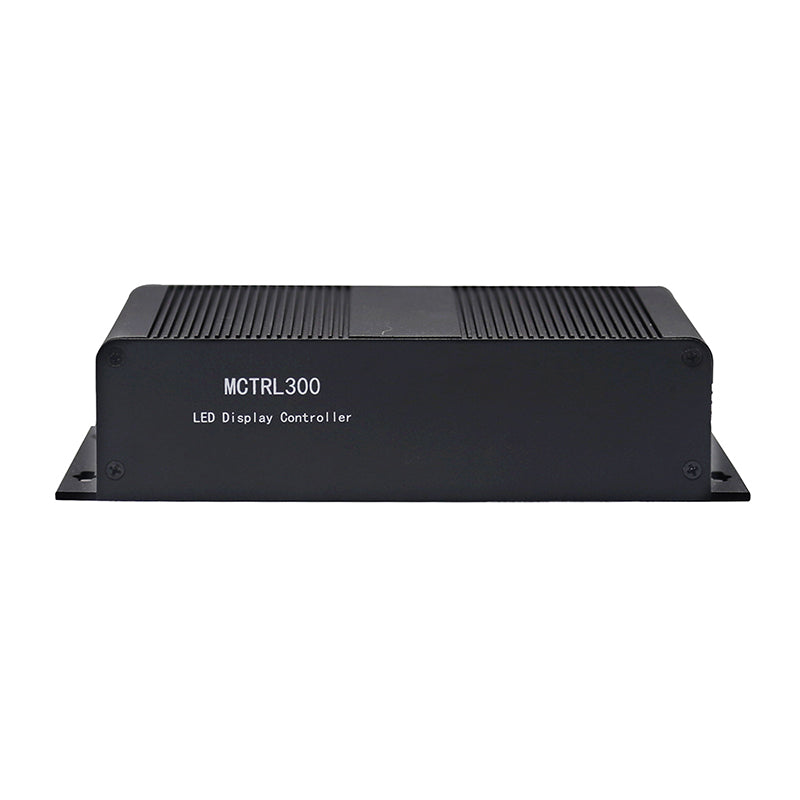

NovaStar MCTRL300

The NovaStar MCTRL300 is an independent LED display controller designed for both rental and fixed installations, such as live events, security monitoring centers, and various sports venues. It supports video and audio input, processing the data and transmitting it to the LED display via Ethernet ports.

Key Features:

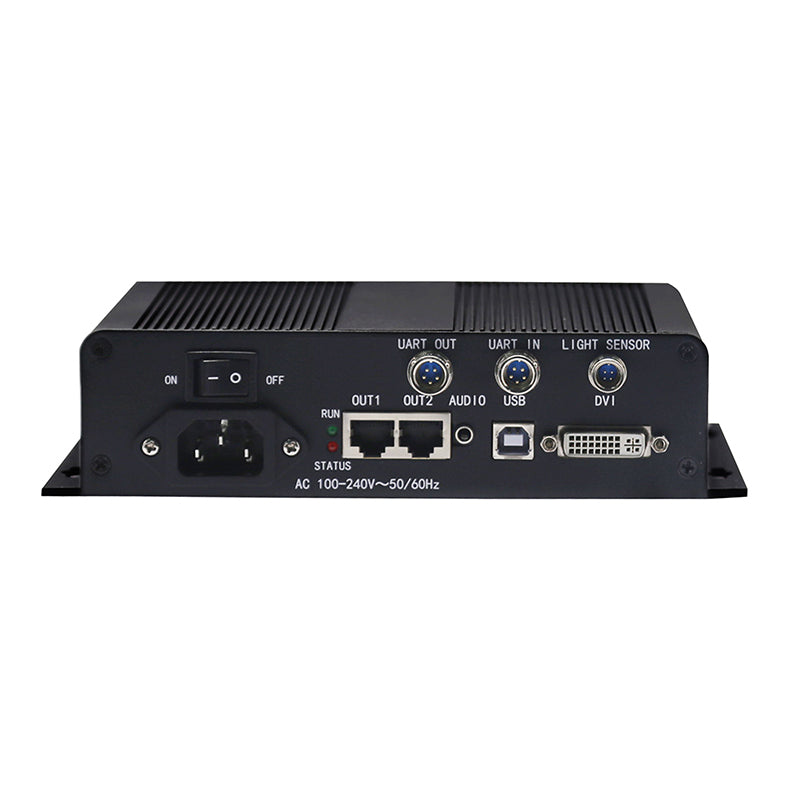

• Input:
  • 1× Single-Link DVI Input
  • 1× Audio Input


• Output:
  • 2× Gigabit Ethernet Ports
  • Each port supports up to 650,000 pixels


• Control and Connectivity:
  • 1× Type-B USB Port for PC Connection
  • 2× UART Ports for Device Cascading (up to 20 devices)
  • 1× Light Sensor Connector for Automatic Brightness Adjustment


• Supported Resolutions:
  • Standard: Up to 1920×1200@60Hz
  • Custom Resolutions Supported:
    • Maximum Width: 3840 pixels
    • Maximum Height: 3840 pixels


• Additional Features:
  • Supports pixel-level brightness and chroma calibration when used with NovaLCT and NovaCLB software, enhancing display consistency.
  • Redundancy between Ethernet ports ensures reliable performance.
  • Automatic brightness adjustment via connected light sensor.

Specifications:

• Electrical:
  • Input Voltage: AC 100V–240V, 50/60Hz
  • Rated Power Consumption: Approximately 3W


• Operating Environment:
  • Temperature: -20°C to +60°C
  • Humidity: 10% RH to 90% RH, non-condensing


• Physical:
  • Dimensions: 204 mm × 160 mm × 48 mm
  • Net Weight: 1.04 kg
