NovaStar MCTRL R5

NovaStar MCTRL R5

€2.311,95 EUR
€2.311,95 EUR
Sale Sold out
Shipping calculated at checkout.
Livrare in 5-10 zile

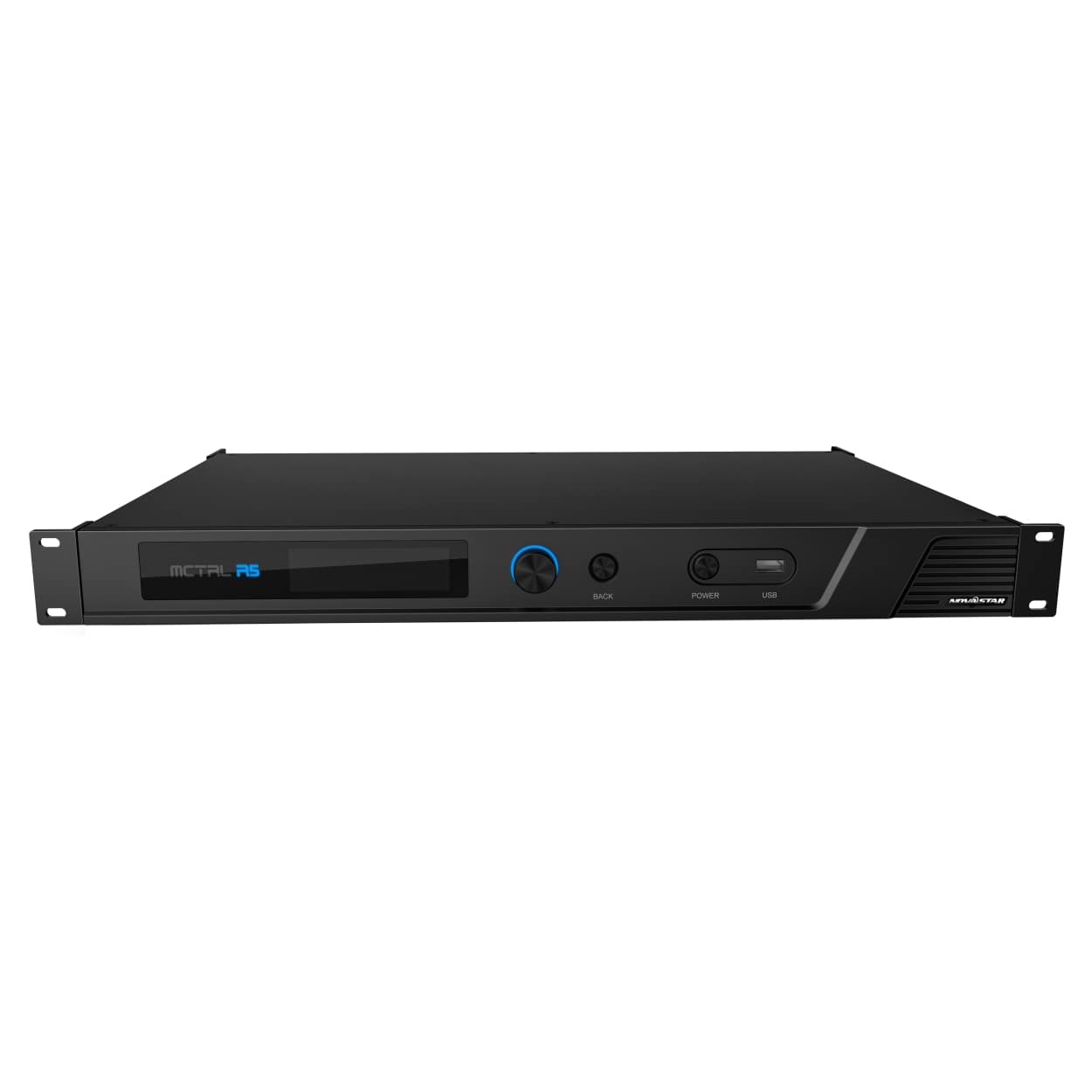

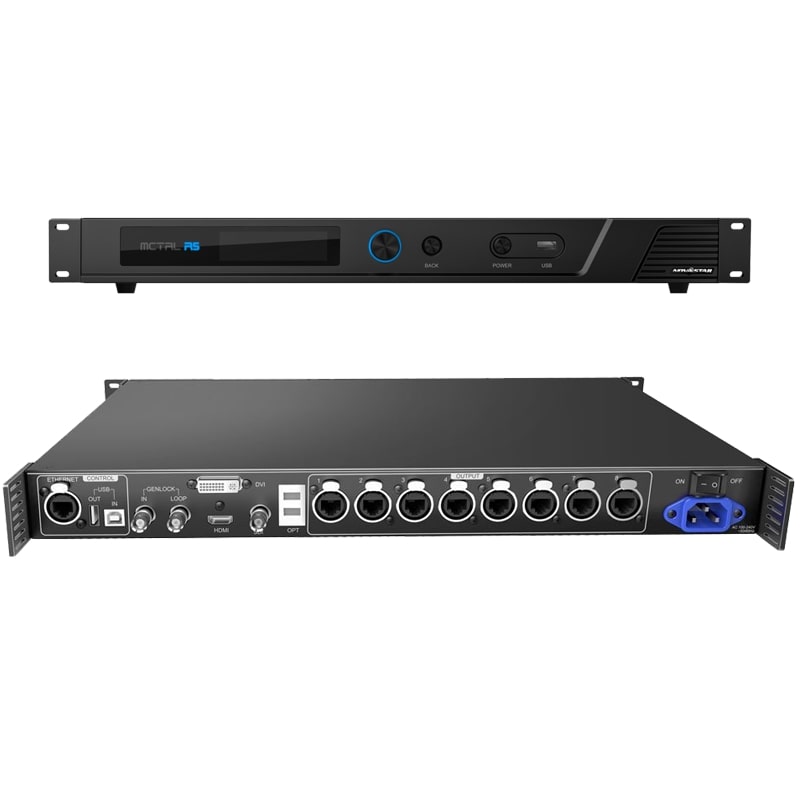

The NovaStar MCTRL R5 is a high-performance LED display controller designed for both rental and fixed applications, including concerts, live events, monitoring centers, and sports arenas. It is notable for being NovaStar's first controller to support image rotation, allowing for creative and dynamic display configurations.

NOVASTAR



Key Features:

  • Input Options:
    • 1× 6G-SDI
    • 1× Dual-Link DVI
    • 1× HDMI 1.4

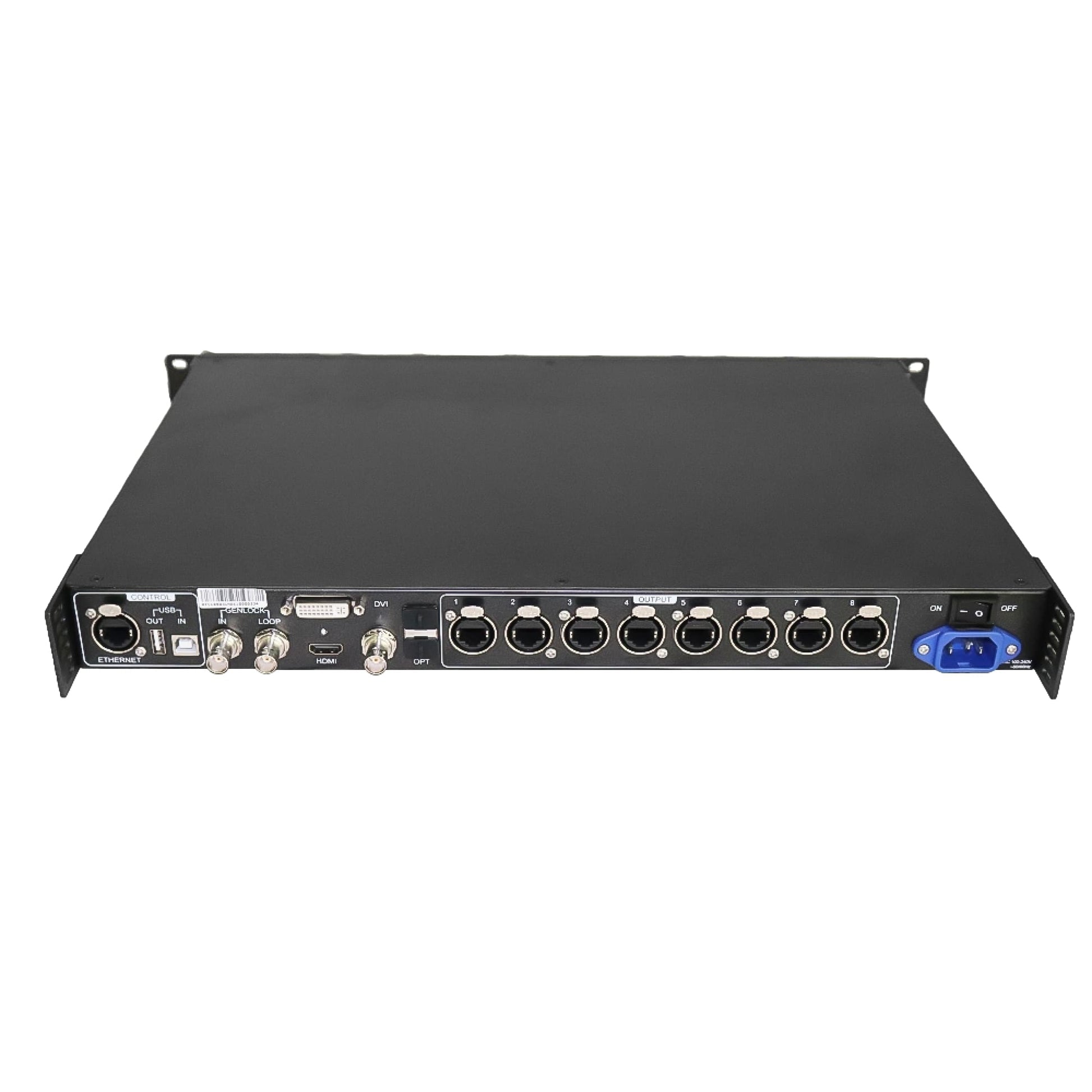

  • Output:
    • 8× Gigabit Ethernet ports
    • 2× Fiber optic outputs

  • Loading Capacity:
    • Supports resolutions up to 3840×1080 at 60Hz
    • Custom resolutions within this capacity are supported

  • Image Rotation:
    • Allows for display rotation at any angle when used with A8s or A10s Plus receiving cards and configured via SmartLCT software

  • Advanced Features:
    • NovaStar G4 engine ensures stable and smooth image display without flickering or scanning lines
    • Supports pixel-level brightness and chroma calibration for enhanced image quality
    • Quick and easy manual brightness adjustment
    • Firmware updates via front panel USB port
    • Supports cascading of multiple controllers for uniform control

Physical Specifications:

  • Dimensions: 482.6 mm × 334.6 mm × 52 mm
  • Weight: Approximately 4.3 kg
  • Power Supply: AC 100–240 V, 50/60 Hz
  • Operating Temperature: -20°C to +60°C
  • Humidity: 10% RH to 90% RH, non-condensing
