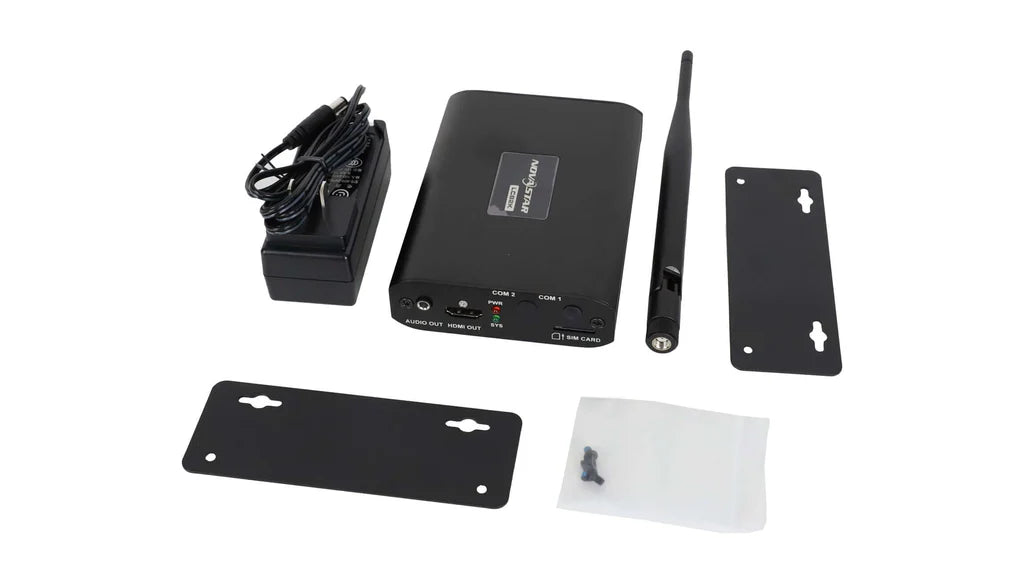

NovaStar LCB2K

The NovaStar LCB2K is an LCD multimedia player designed for applications such as advertising media, digital signage, and commercial displays. It offers robust processing capabilities and versatile control options to meet diverse display needs.

Key Features:

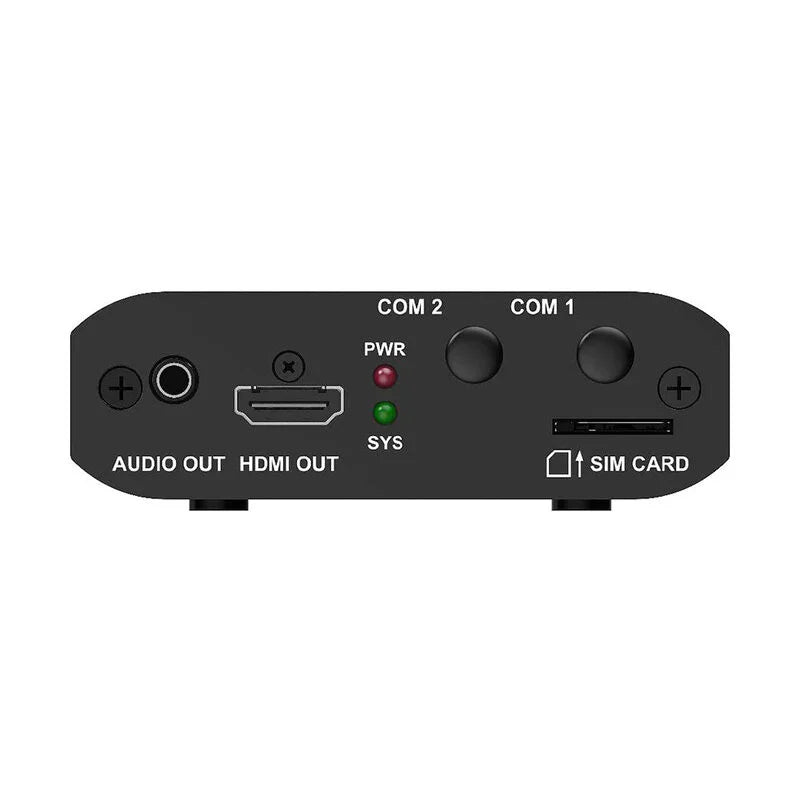

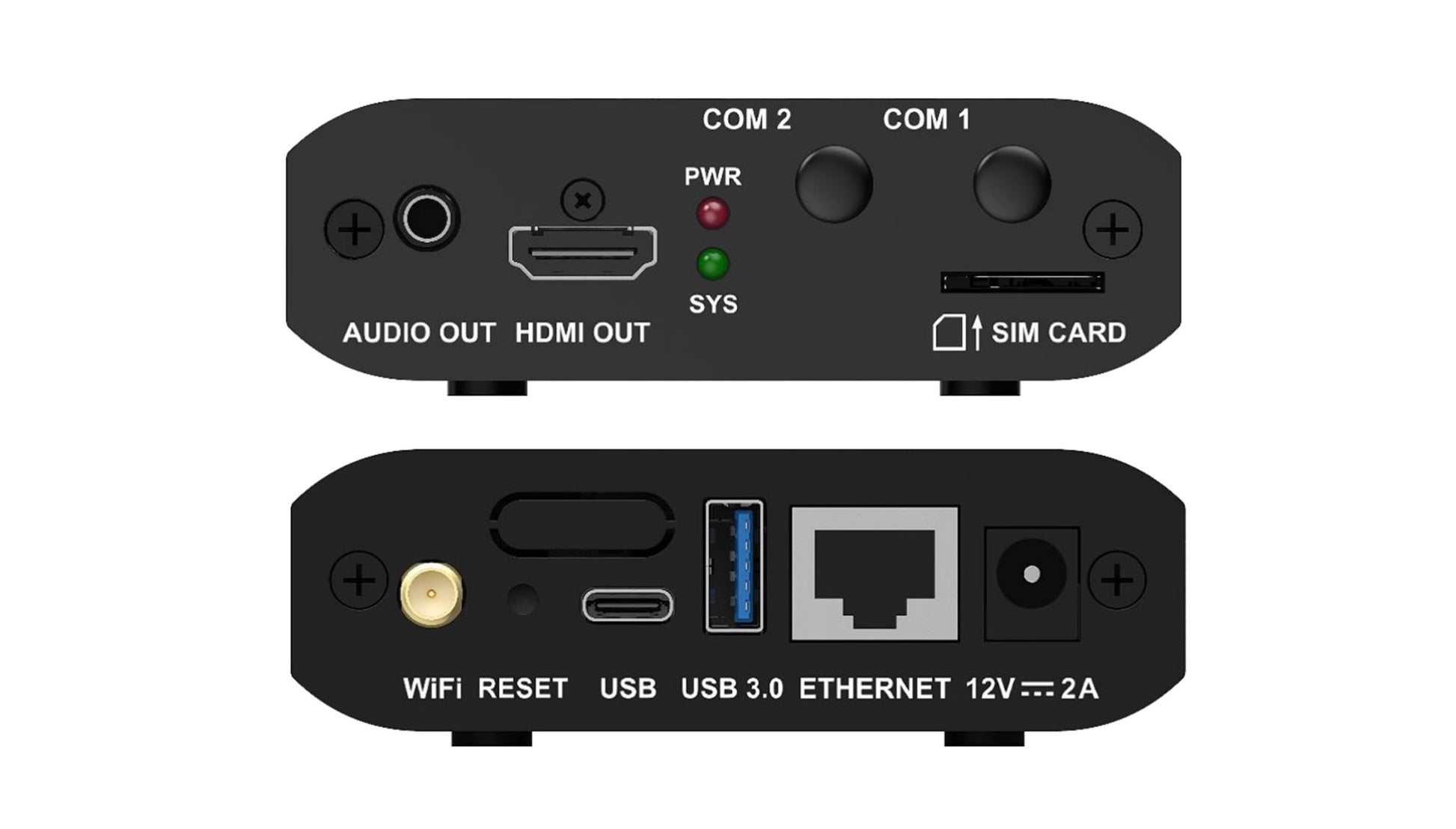

• Output:
  • 1× HDMI connector
    • Adaptive mode: Automatically adjusts the playback window resolution according to the EDID of the LCD display.
  • 1× Stereo audio connector
    • Audio sample rate fixed at 48 kHz.

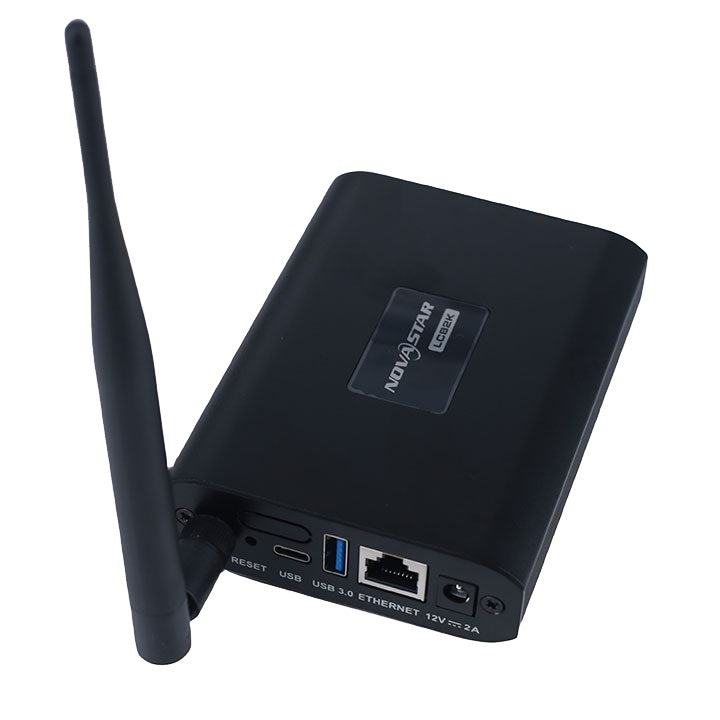

• Control:
  • 1× USB 3.0 (Type A) port
    • Supports USB playback, firmware upgrades, and storage expansion.
  • 1× USB (Type C) port
    • Connects to a control computer for content publishing and screen control.
  • 1× Fast Ethernet port
    • Connects to a control computer, LAN, or public network for content publishing and screen control.


• Performance:
  • Quad-core processor @1.3 GHz
  • 1 GB RAM
  • 16 GB internal storage
  • Supports decoding of 4K videos
  • Capable of flawless playback of 1× 4K video, 2× 1080p videos, or 4× 720p videos


• Functionality:
  • Comprehensive control options:
    • Allows users to publish content and control screens from a computer, mobile phone, or tablet.
    • Enables content publishing and screen control from anywhere, anytime.
    • Supports monitoring of screens remotely.
  • Synchronous playback across multiple screens (Playback limit: 1× 1080p video):
    • NTP time synchronization
    • GPS time synchronization (requires specified 4G module)
    • RF time synchronization (requires specified RF module)
  • Switching between Wi-Fi AP and Wi-Fi STA modes:
    • In Wi-Fi AP mode, user terminals connect to the built-in Wi-Fi hotspot of the LCB2K.
    • In Wi-Fi STA mode, both the user terminal and the LCB2K connect to the Wi-Fi hotspot of a router.
  • Support for 4G modules (sold separately):
    • Network connection priority: Wired network > Wi-Fi network > 4G network

Specifications:

• Electrical Parameters:
  • Input voltage: DC 12 V, 2 A
  • Maximum power consumption: 18 W

• Storage Capacity:
  • RAM: 1 GB
  • Internal storage: 16 GB

• Operating Environment:
  • Temperature: -20°C to +60°C
  • Humidity: 0% RH to 80% RH, non-condensing

• Physical Specifications:
  • Dimensions: 123.0 mm × 89.0 mm × 29.5 mm
  • Net weight: 255.4 g
