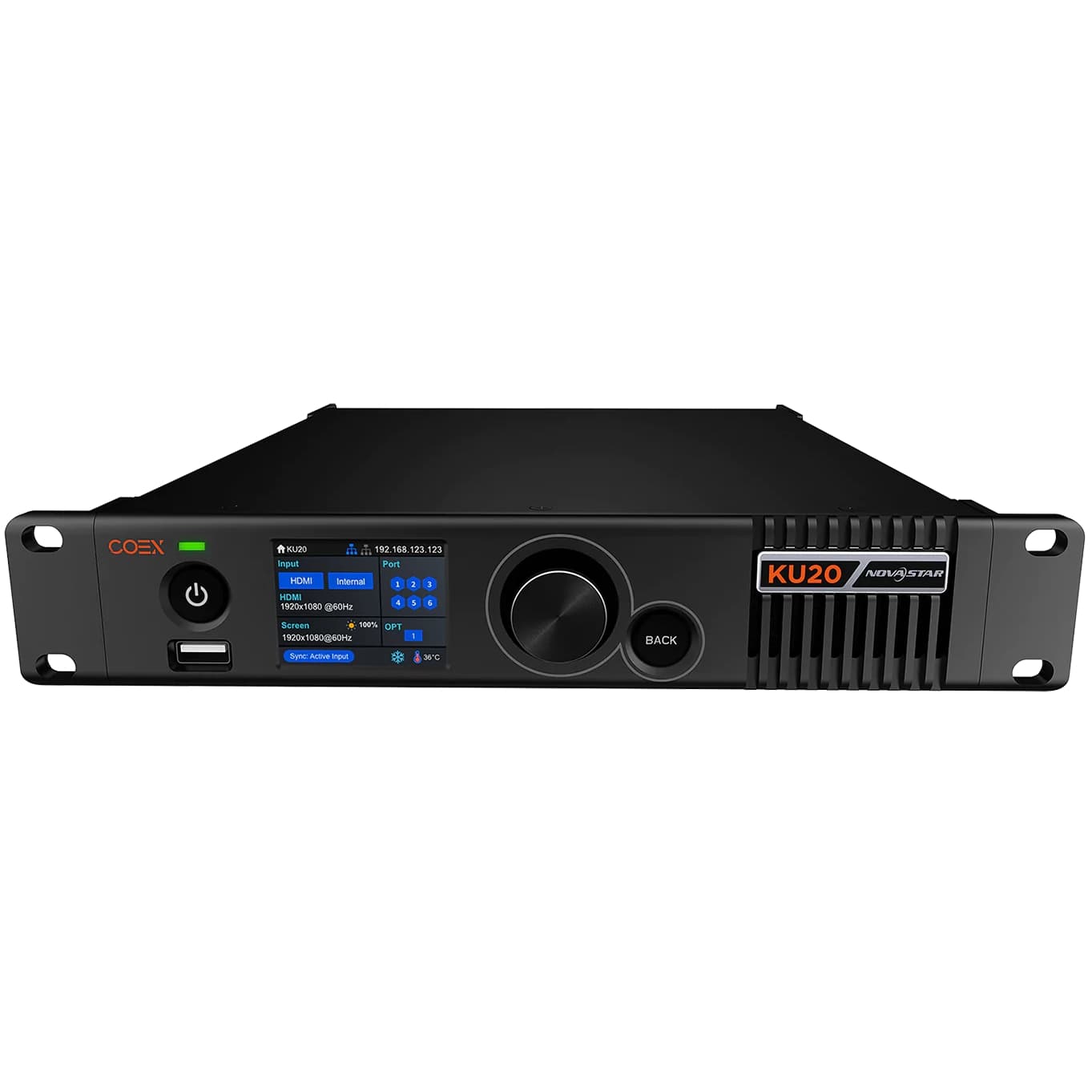

NovaStar KU20

The NovaStar KU20 is an LED display controller from the COEX series, offering advanced features for enhanced display management. Below is a summary of its key specifications:

NOVASTAR

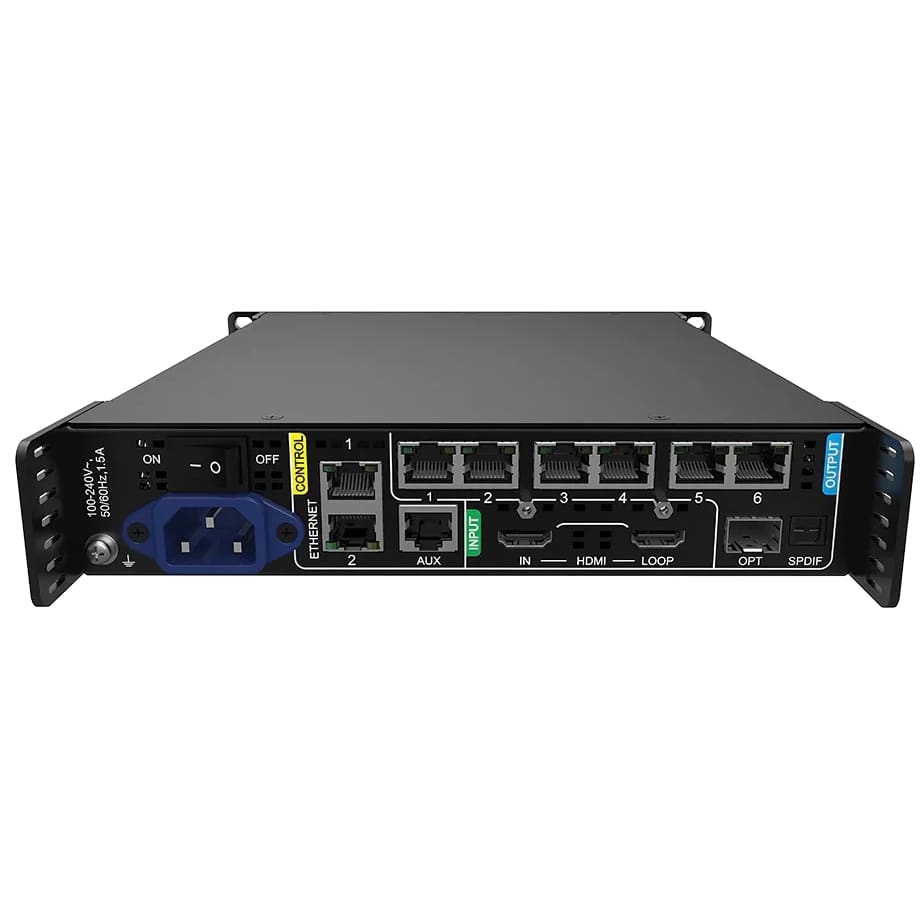

Inputs and Outputs:

• HDMI Input: 1× HDMI 1.3 (with loop through)
• Ethernet Outputs: 6× Gigabit Ethernet ports, supporting a total load capacity of up to 3.9 million pixels
• Optical Output: 1× 10G optical output

Advanced Features:

• Image Scaling: Supports custom and pixel-to-pixel scaling modes
• Full Grayscale Calibration: Works with NovaStar’s high-precision calibration system to ensure uniformity across all grayscale levels
• Pixel-Level Brightness and Chroma Calibration: Calibrates each pixel for brightness and chroma to achieve high consistency
• Low Latency: Offers a latency of less than 1 ms at the controller, with support for adding zero to two frames of additional latency if needed
• Frame Rate Adaptive: Automatically adapts to various video input frame rates, including decimal rates, with fine-tuning available in 0.01 Hz increments
• Display System Monitoring: Monitors device and screen status, actively reporting any faults or alarms

Device Controls:

• VMP Software Control: Compatible with NovaStar's Vision Management Platform (VMP) for enhanced operation and control
• Cascading Control via Ethernet: Supports TCP/IP protocol and star topology, allowing multiple devices to be deployed on the same LAN without the need for external switches or routers

Physical Specifications:

• Dimensions: 254.3 mm × 50.6 mm × 290.0 mm
• Net Weight: 2.1 kg
• Power Input: 100-240V~, 50/60Hz, 1.5A
• Maximum Power Consumption: 25 W
