NovaStar Seria H 4xFiber Sender Card

NovaStar Seria H 4xFiber Sender Card

€2.744,95 EUR
€2.744,95 EUR
Sale Sold out
Shipping calculated at checkout.
Livrare in 5-10 zile

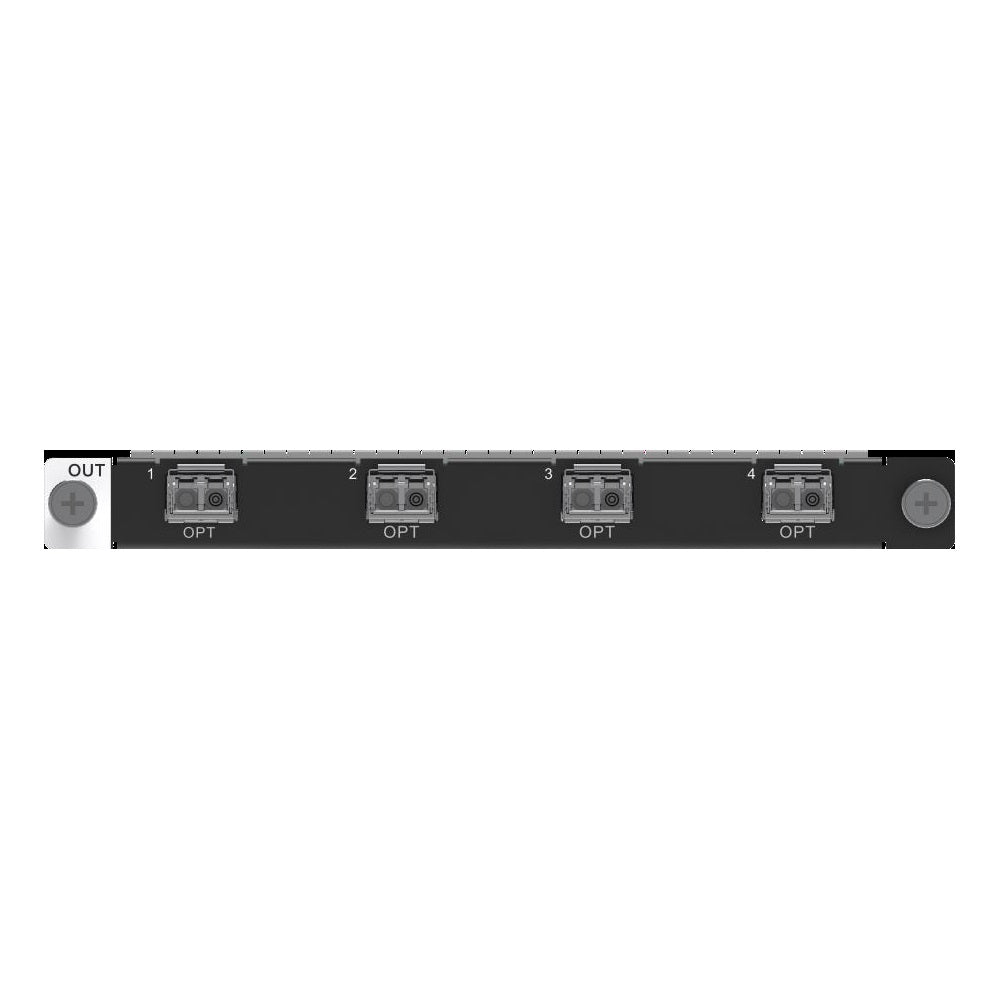

The NovaStar H_4xFiber Sending Card is an output module designed for NovaStar's H-Series controllers, offering high-capacity transmission and flexible configuration options.

NOVASTAR

Output Capacity:

  • Total Loading Capacity: Up to 20,800,000 pixels.
    • Maximum Width: 16,384 pixels.
    • Maximum Height: 16,384 pixels.

Optical Fiber Outputs:

  • Quantity: 4× 10G OPT ports.
  • Supported Optical Modules: Compatible with both single-mode and multi-mode SFP+ modules, including:
    • 10G SFP+ SR
    • 10G SFP+ LRM
    • 10G SFP+ LR
    • 10G SFP+ ER
    • 10G SFP+ ZR
    • SFP+ CWDM
    • SFP+ DWDM
    • SFP+ BIDI
  • Transmission Distance: Supports transmission distances of up to 10 km, depending on the selected optical module.

Operating Modes:

  • Independent Mode: All four OPT ports operate independently, each handling a portion of the total load.
  • Copy Mode: OPT 1 and OPT 2 serve as main outputs, while OPT 3 copies the output of OPT 1, and OPT 4 copies the output of OPT 2.
  • Backup Mode: OPT 1 and OPT 2 are main outputs; OPT 3 serves as a backup for OPT 1, and OPT 4 serves as a backup for OPT 2.

Color Depth Support:

  • 8-bit: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2.
  • 10-bit: RGB 4:4:4, YCbCr 4:4:4.

Physical Specifications:

  • Weight: Approximately 0.6 kg (600 grams).
  • Dimensions: 193 mm × 247.12 mm × 21.15 mm.
  • Power Consumption: 22.9 W.
View full details

NovaStar Partener

LEDROM is the official distributor of Novastar in Romania, specializing in the integration of LED screen projects and the organization of NCE training and certifications. The collaboration with Novastar, a global leader in control solutions for LED screens, allows LEDROM to offer advanced and customized solutions for various applications.

As a project integrator, LEDROM handles the full implementation of LED display systems, from consulting and design to installation and maintenance. This approach ensures clients receive efficient, high-quality solutions tailored to the specific needs of each project. LEDROM organizes NCE (NovaStar Certified Engineer) training and certifications aimed at professionals in the audiovisual field. These courses provide in-depth knowledge about NovaStar products and technologies, contributing to the development of participants' technical skills and ensuring the correct and efficient implementation of LED screen systems.
