NovaStar Seria H 4xDVI Output Card

NovaStar Seria H 4xDVI Output Card

€780,95 EUR
€780,95 EUR
Sale Sold out
Shipping calculated at checkout.
Livrare in 5-10 zile

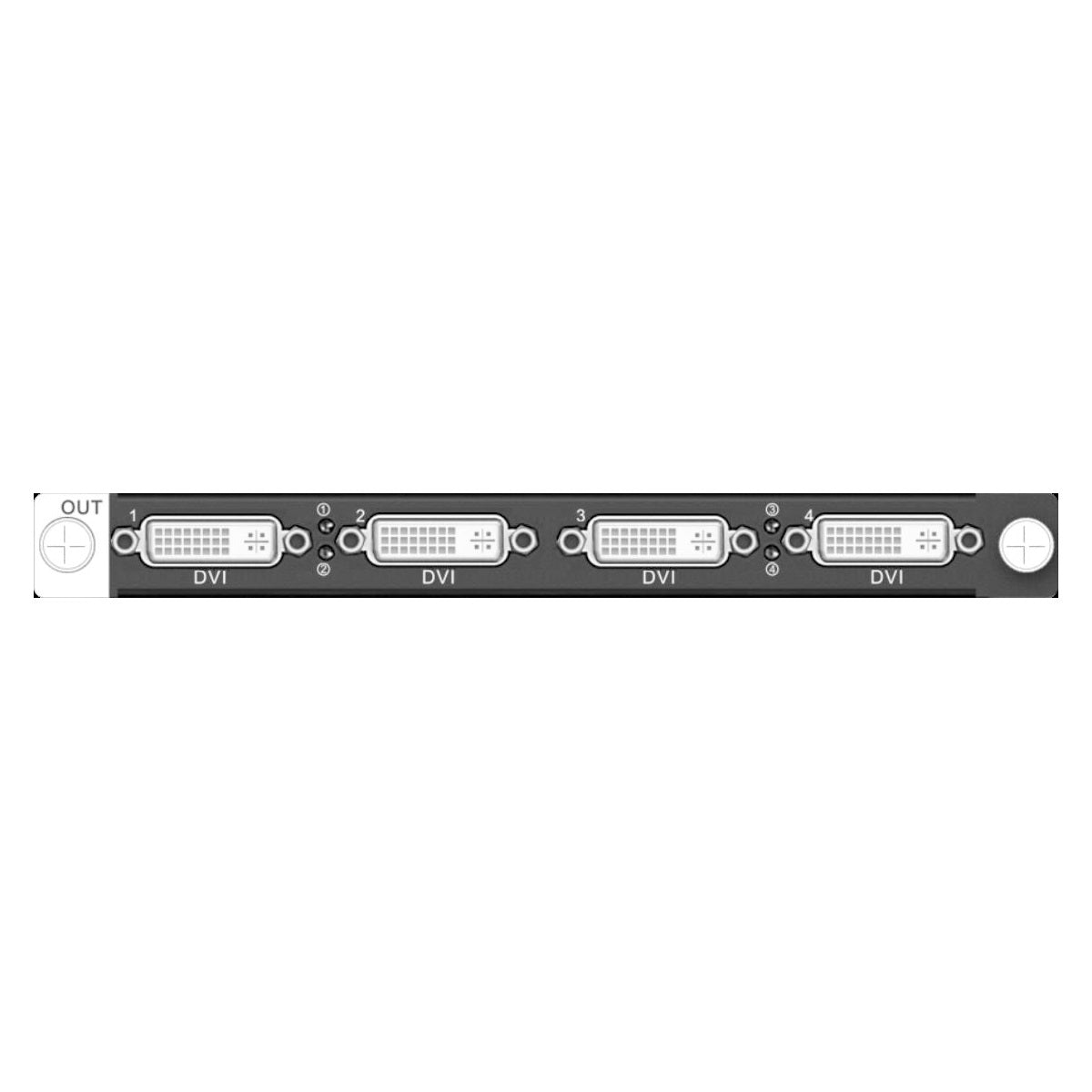

The NovaStar H_4xDVI Output Card is designed for use with NovaStar's H-Series controllers, providing versatile DVI output capabilities.

NOVASTAR

Output Connectors:

  • Four Single-Link DVI (SL-DVI) connectors.

Single-Link Output Mode:

  • All four connectors are active.
  • Maximum Resolution per Connector: 2048×1152 at 60Hz.
  • Custom Resolutions Supported:
    • Maximum Width: 2560 pixels (e.g., 2560×972 at 60Hz).
    • Maximum Height: 2560 pixels (e.g., 884×2560 at 60Hz).
  • Supported Color Sampling:
    • 8-bit: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2.
    • 10-bit: YCbCr 4:4:4.

Dual-Link Output Mode:

  • Active Connectors: Connectors 2 and 4 (Connectors 1 and 3 mirror outputs of 2 and 4, respectively).
  • Protocol: HDMI 1.4.
  • Maximum Resolution per Connector: 4096×2160 at 30Hz or 3840×1080 at 60Hz.
  • Custom Resolutions Supported:
    • Maximum Width: 4096 pixels (e.g., 4096×1124 at 60Hz).
    • Maximum Height: 4096 pixels (e.g., 1014×4096 at 60Hz).
  • Supported Color Sampling:
    • 8-bit: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2.
    • 10-bit: YCbCr 4:4:4.

Status Indicators:

  • Each output connector features an LED indicator:
    • On: Connector is functioning normally.
    • Off: Connector is not active or connected.

Physical Specifications:

  • Weight: Approximately 500 grams.
  • Dimensions: 193 mm × 247.12 mm × 21.15 mm.
  • Power Consumption: 22.9 W.
