NovaStar Seria H 1xSTD I/O Card

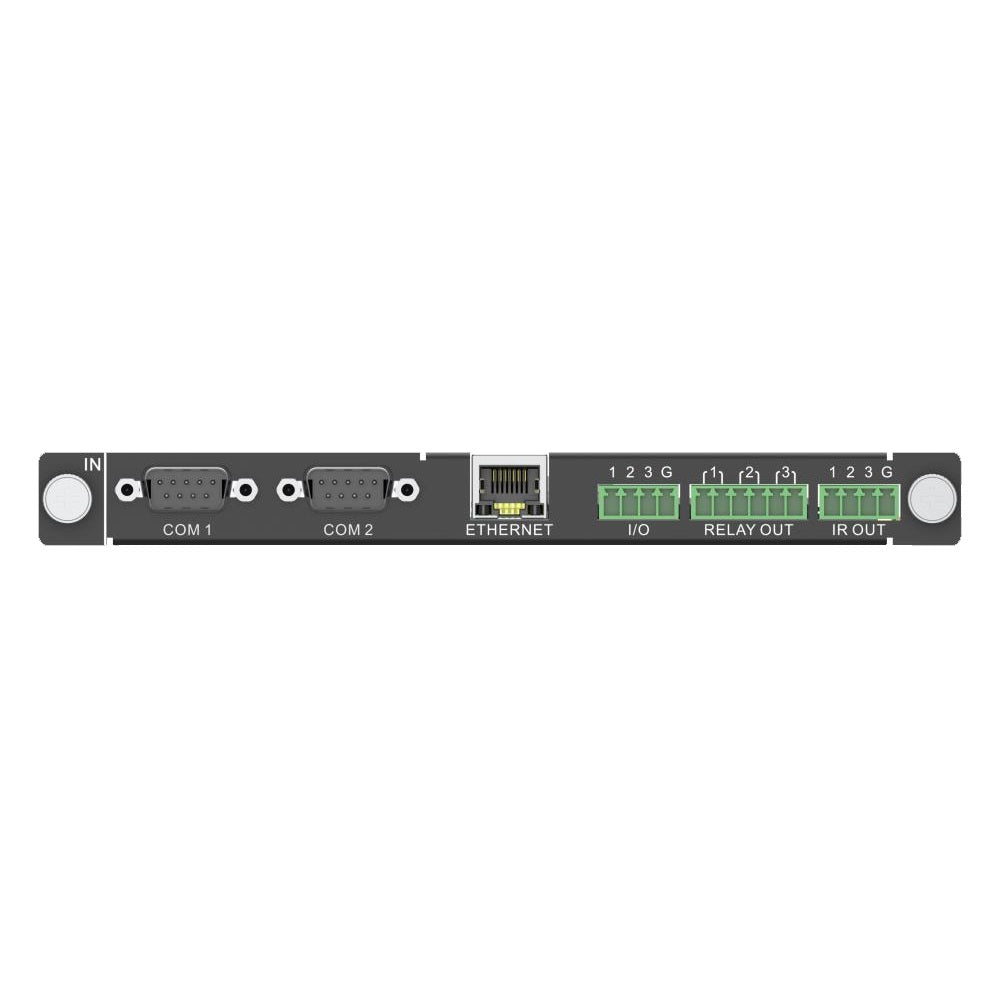

The NovaStar H_STD I/O Card is designed for integration with NovaStar's H Series Video Wall Splicers, such as the H2, H5, H9, and H15 models. This card enhances the system's control capabilities by providing various input and output interfaces for device communication and control.

Key Features:

• Connectors:
  • 2x COM Ports:
    • Programmable RS422/RS485/RS232 ports for controlling devices that utilize these communication protocols.
    • Each port's pin configuration supports versatile connectivity options.


  • 1x ETHERNET Port:
    • Allows for device control over a network connection.
    • Supports 10/100Mbps self-adaptive speeds.
    • Compatible with TCP/IP and UDP/IP protocols.


  • 3x I/O Ports:
    • Configurable as either input or output.
    • Used to trigger specific functions through programming.
    • Pins 1, 2, and 3 can be set to input or output modes, with pin G serving as the common ground.


  • 3x RELAY OUT Ports:
    • Connect to relays to control the power state (on/off) of connected devices.
    • Each relay supports up to 30 VDC and 3A current.
    • The six pins are divided into three groups, each controllable via programming.


  • 3x IR OUT Ports:
    • Support for programmable infrared control.
    • Pins 1, 2, and 3 are designated for infrared emission, with pin G as the common ground.

Specifications:

• Weight: Approximately 400 g
• Dimensions: 193 mm × 247.12 mm × 21.15 mm
• Power Consumption: Approximately 1.2 W
