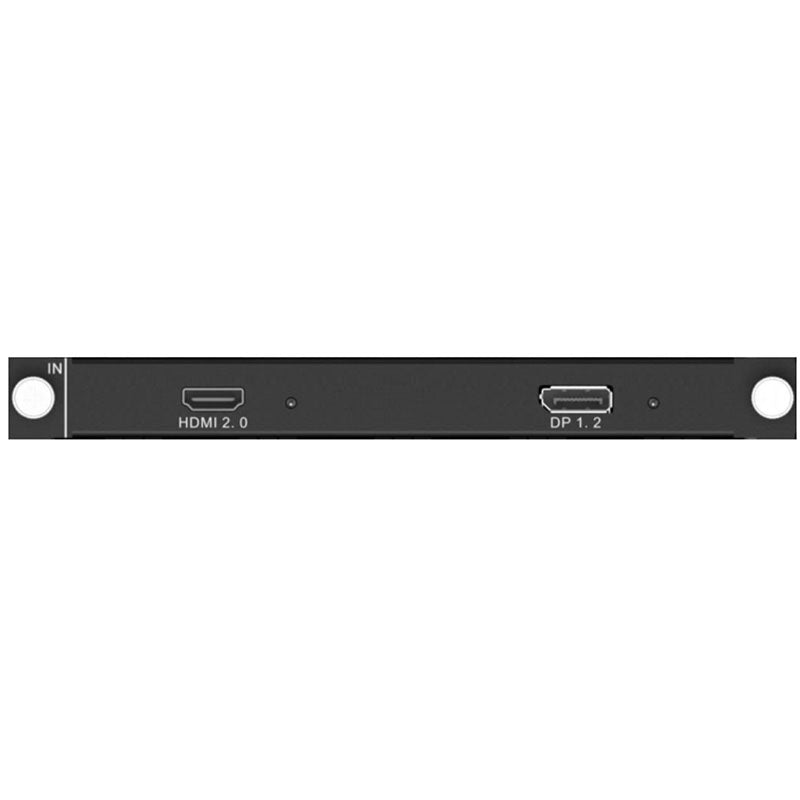

NovaStar Seria H 1xHDMI2.0+1xDP1.2 Input Card

The NovaStar H_1xHDMI2.0+1xDP1.2 is an input card designed for the H Series Video Wall Splicers, including models such as the H2, H5, H9, and H15. This card offers one HDMI 2.0 and one DisplayPort 1.2 (DP1.2) connector, providing flexible input options for high-definition video sources.

NOVASTAR

Key Features:

• Connectors:
  • 1x HDMI 2.0
  • 1x DP 1.2
• Usage:
  • Only one connector can be used at a time.
  • The active connector can be selected via the device's web interface; by default, the HDMI 2.0 connector is active.


• Resolution Support:
  • HDMI 2.0:
    • Backward compatible with HDMI 1.4 and HDMI 1.3.
    • Maximum resolution: 4096×2160 at 60Hz or 8192×1080 at 60Hz.
    • Custom resolutions supported with a maximum width of 4092 pixels (e.g., 4092×2261 at 60Hz) and a maximum height of 4095 pixels (e.g., 2188×4095 at 60Hz).
  • DP 1.2:
    • Backward compatible with DP 1.1.
    • Maximum resolution: 4096×2160 at 60Hz or 8192×1080 at 60Hz.
    • Custom resolutions supported with a maximum width of 8192 pixels (e.g., 8192×1146 at 60Hz) and a maximum height of 4095 pixels (e.g., 2188×4095 at 60Hz).


• Color Depth:
  • Supports 10-bit input sources.


• HDCP Compliance:
  • HDCP 2.2 compliant.


• Additional Features:
  • Supports accompanied audio.
  • Supports 144Hz input.
  • Does not support interlaced signal input.
