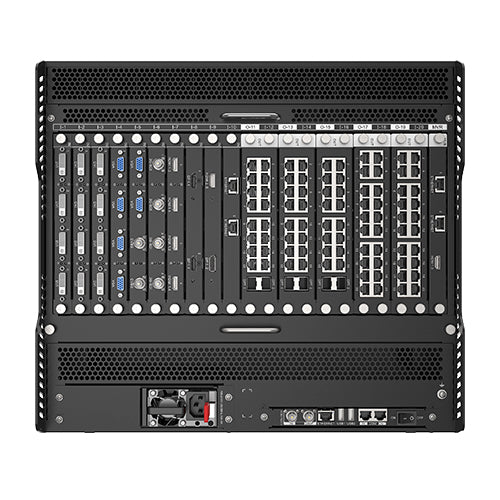

NovaStar H9 Enhanced Video Wall Splicer

NovaStar H9 Enhanced Video Wall Splicer

€2.590,95 EUR
€2.590,95 EUR
Sale Sold out
Shipping calculated at checkout.
Livrare in 5-10 zile

The NovaStar H9 Enhanced Video Wall Splicer is a high-performance processor designed specifically for fine-pitch LED displays. It integrates advanced video processing and control capabilities, making it suitable for various applications such as energy and power monitoring, military command centers, broadcasting, and stage rentals.

NOVASTAR



Key Features:

  • Modular Design: The H9 Enhanced adopts a modular and plug-in architecture, allowing for flexible configuration and hot-swapping of input and output cards. This design ensures easy maintenance and scalability. High Loading Capacity: The splicer supports up to 65 million pixels, accommodating up to 15 input cards and 5 output cards, with a maximum of 60 input channels. This capacity makes it suitable for large-scale and high-resolution video wall applications.
  • Versatile Input and Output Options: The H9 Enhanced supports a variety of input cards, including HDMI, DVI, DP, VGA, CVBS, SDI, and IP, catering to diverse signal requirements. Output options include multiple Ethernet and fiber outputs, providing flexibility in system design.
  • Advanced Image Processing: With support for 10-bit video processing, HDR10, and HLG, the H9 Enhanced ensures superior image clarity and color performance. It also offers features like multi-screen and multi-layer management, input and output EDID management, input source renaming, background (BKG) and on-screen display (OSD) settings, providing a rich image construction experience.
  • Web-Based Control: The splicer adopts a B/S architecture, supporting cross-platform and cross-system access and control without the need for additional software installations. This feature enhances user convenience and operational efficiency.

Specifications:

  • Form Factor: 9U rackmount
  • Power Supply: AC 100–240V~, 50/60Hz, 10A–5A
  • Power Consumption: 450 W
  • Dimensions: 482.6 mm × 533.0 mm × 405.8 mm
  • Net Weight: 27.2 kg (chassis)
  • Operating Temperature: 0°C to 45°C
  • Operating Humidity: 0% RH to 80% RH, non-condensing
