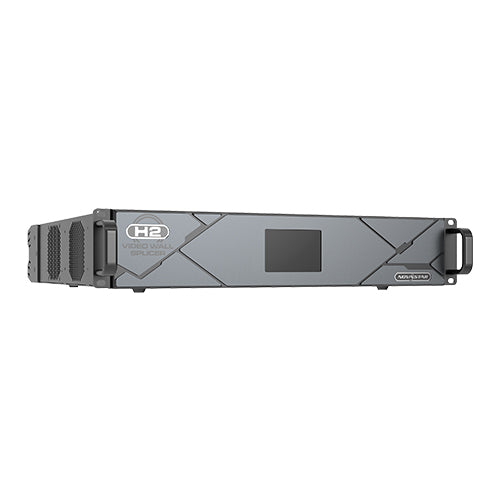

NovaStar H2 Video Wall Splicer

The NovaStar H2 Video Wall Splicer is a high-performance device designed for fine-pitch LED displays, offering advanced video processing and control capabilities. Below are its detailed specifications:

NovaStar

General Specifications:

• Model: H2
• Form Factor: 2U rackmount
• Input Capacity: Supports up to 4 input cards, accommodating up to 16 input channels
• Output Capacity: Supports up to 2 output cards, with a maximum loading capacity of 41.6 million pixels
• Maximum Layers: Supports up to 32 layers
• Power Supply: AC 100–240V~, 50/60Hz, 4.0A
• Power Consumption: 210 W
• Dimensions: 482.6 mm × 529.8 mm × 88.1 mm
• Net Weight: 11 kg (chassis)
• Operating Temperature: 0°C to 45°C
• Operating Humidity: 0% RH to 80% RH, non-condensing

Input Card Options:

• H_4xDVI Input Card:
  • 4x DVI connectors
  • Supports single link and dual link input modes
  • 10-bit input source
  • HDCP 1.4 compliant


• H_1xHDMI2.0+1xDP1.2 Input Card:
  • 1x HDMI 2.0 connector
  • 1x DP 1.2 connector
  • Only one connector can be used at a time
  • Supports up to 3840×2160@60Hz
  • HDCP 2.2 compliant


• H_2xRJ45 IP Input Card:
  • 2x RJ45 Gigabit Ethernet ports
  • Supports up to 512 IP camera inputs
  • Supports H.264 and H.265 coding formats

Output Card Options:

• H_4xDVI Output Card:
  • 4x SL-DVI connectors
  • Supports single output and dual link output modes
  • Supports up to 144Hz output


• H_4xHDMI Output Card:
  • 4x HDMI 1.4 connectors
  • Supports single output and dual link output modes
  • Supports up to 144Hz output


• H_16xRJ45+2xFiber Sending Card:
  • 16x RJ45 Gigabit Ethernet outputs
  • 2x OPT outputs
  • Loading capacity up to 10,400,000 pixels
  • Supports 8-bit and 10-bit outputs
  • Supports up to 144Hz output
