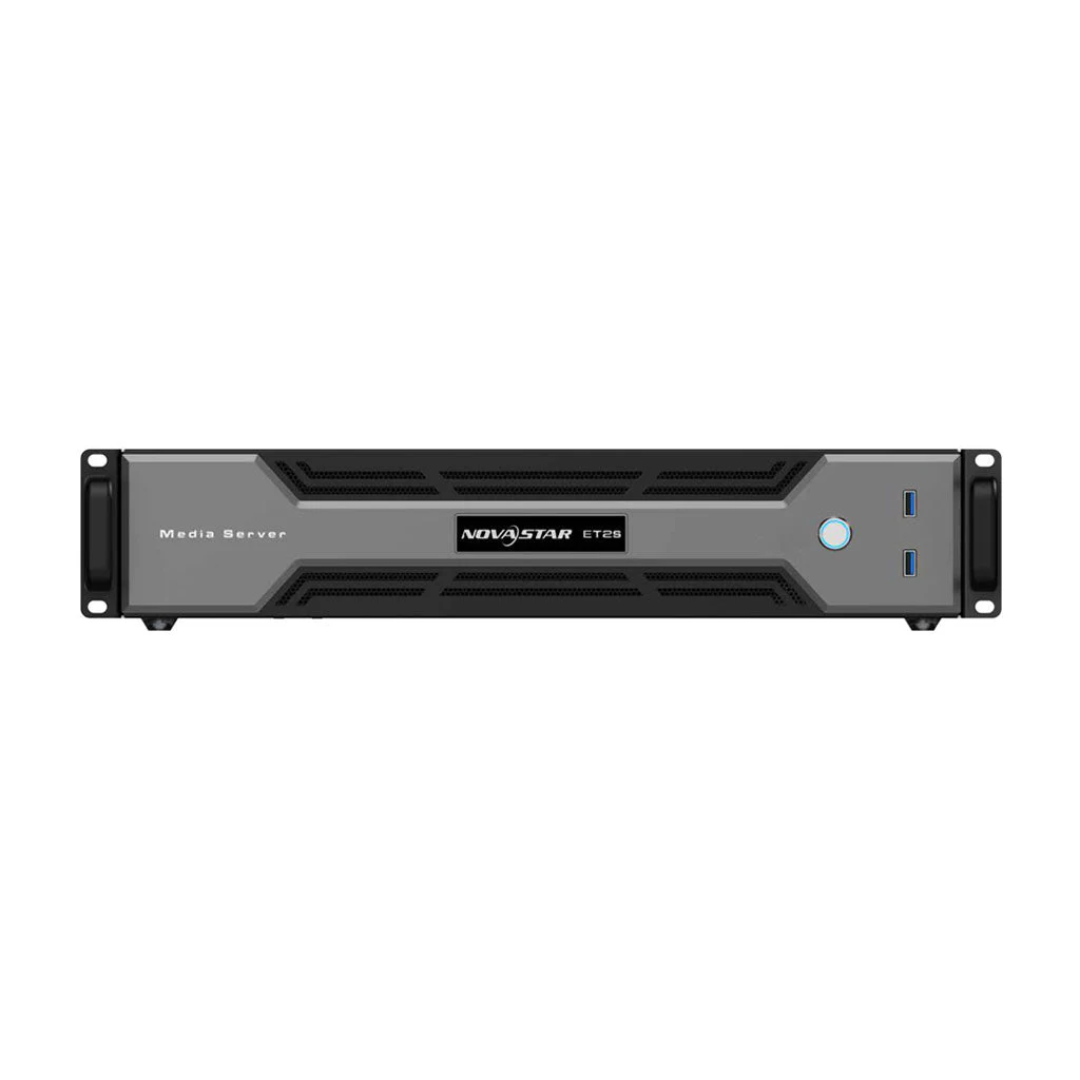

NovaStar ET2S-G Media Server

The NovaStar ET2S-G is a high-performance media server designed for small to medium-sized fixed installations, such as multimedia exhibition halls and banquet venues. It offers ultra-high-definition, pixel-to-pixel display capabilities, along with advanced media management features to enhance professional stage performances.

Key Features:

• High-Resolution Output:
  • Supports up to 8K×2K@60Hz output, ensuring ultra-high-resolution video decoding and pixel-to-pixel display.


• Flexible Output Options:

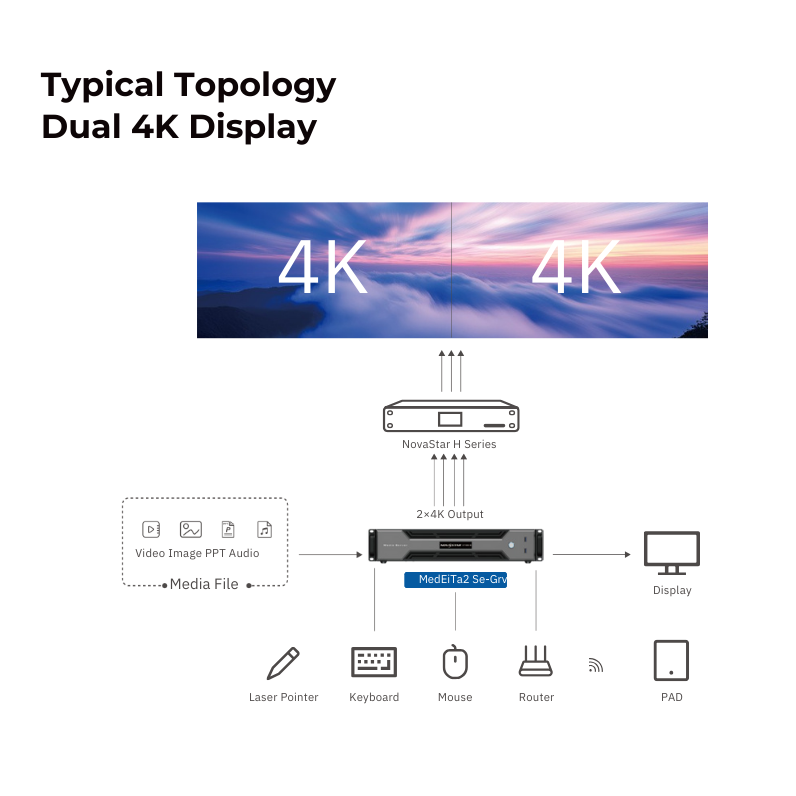

  • Equipped with 1× DP 1.2 and 2× HDMI 2.0 mosaic outputs, allowing for splitting, merging, and rotating multiple outputs to create creative displays on irregular screens.


• Advanced Screen Configuration:
  • A single output can be divided into up to 64 partitions, facilitating quick mapping settings and ultra-wide screen configurations.


• Layered Playback:
  • Capable of playing up to 8 media layers and 1 audio layer simultaneously, with visualized program arrangement and management.


• Dual Editing Modes:
  • Live Mode: Program editing and playback occur in sync.
  • Pre-Edit Mode: Allows for program editing before displaying them on the screen.


• Comprehensive Media Library:
  • Supports various media types, including videos, pictures, PowerPoint files (up to 1080p), audio, NDI sources, web pages, streaming media, and text. Features media file sorting and batch import capabilities.


• Enhanced Presentation Tools:
  • Includes a laser pointer function for navigating through PowerPoint slides.


• Seamless Playback Management:
  • Offers playback progress management, program auto-jump, configurable layer size and priority, crossfade transitions on program switching, and main media-based playback progress management.


• Creative Visual Effects:
  • Provides layer masking, cropping, keying, blurring, and opacity adjustment features.


• Audio Consistency:
  • Ensures that audio properties are inherited within the same layer of a program, maintaining audio consistency when media is replaced.


• Efficient Workflow:
  • Supports hardware decoding, automatic saving during project file editing, and one-click Fade to Black (FTB) functionality.


• Automation:
  • Automatically starts built-in software upon system power-on and begins program playback on software startup.


• Control Software:
  • Integrated with the Visual Intelligent Control Platform (VICP), providing a highly efficient and user-friendly control experience.

Physical Specifications:

• Dimensions: 482.6 mm × 94.6 mm × 581.1 mm
• Weight: Approximately 10 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Operating Temperature: 0°C to 45°C
• Humidity: 0% to 80% RH, non-condensing
