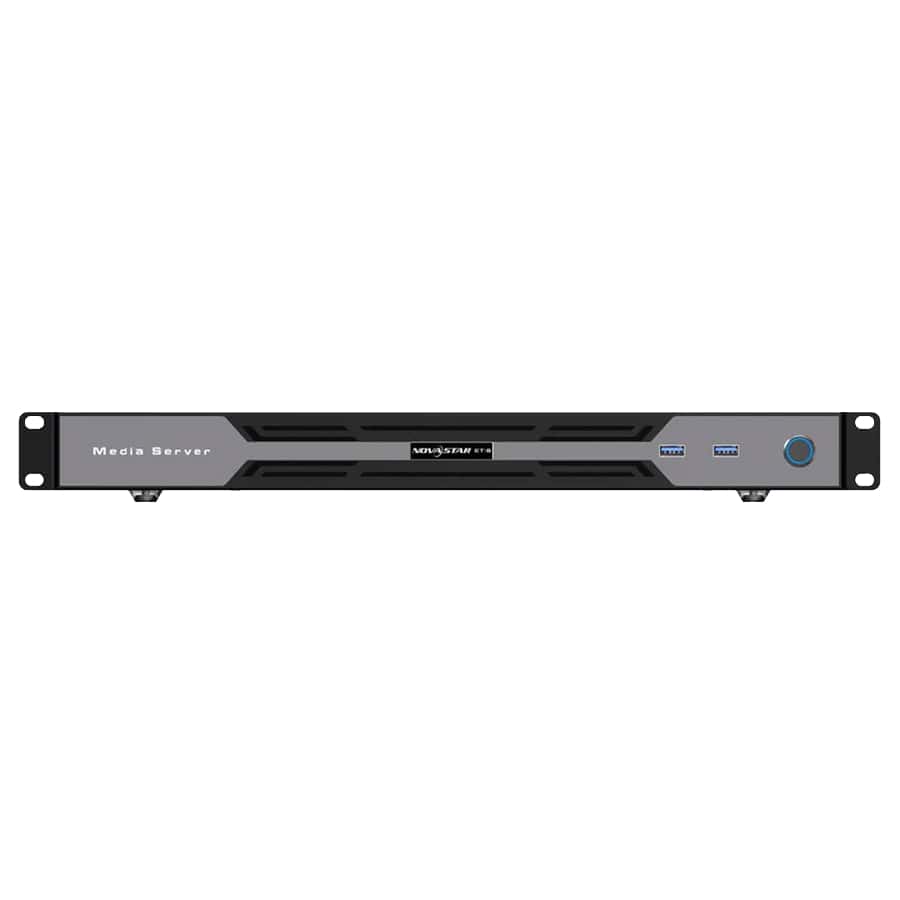

NovaStar ET1S-G Media Server

The NovaStar ET1S-G is a media server designed for small-scale LED or LCD fixed installations, such as exhibitions, showrooms, and conference rooms. It offers high-quality, ultra-high-resolution pixel-to-pixel display capabilities, along with versatile media management features.

Key Features:

• High-Resolution Output:
  • Supports up to 4K×2K@60Hz output, ensuring ultra-high-resolution video decoding and pixel-to-pixel display.

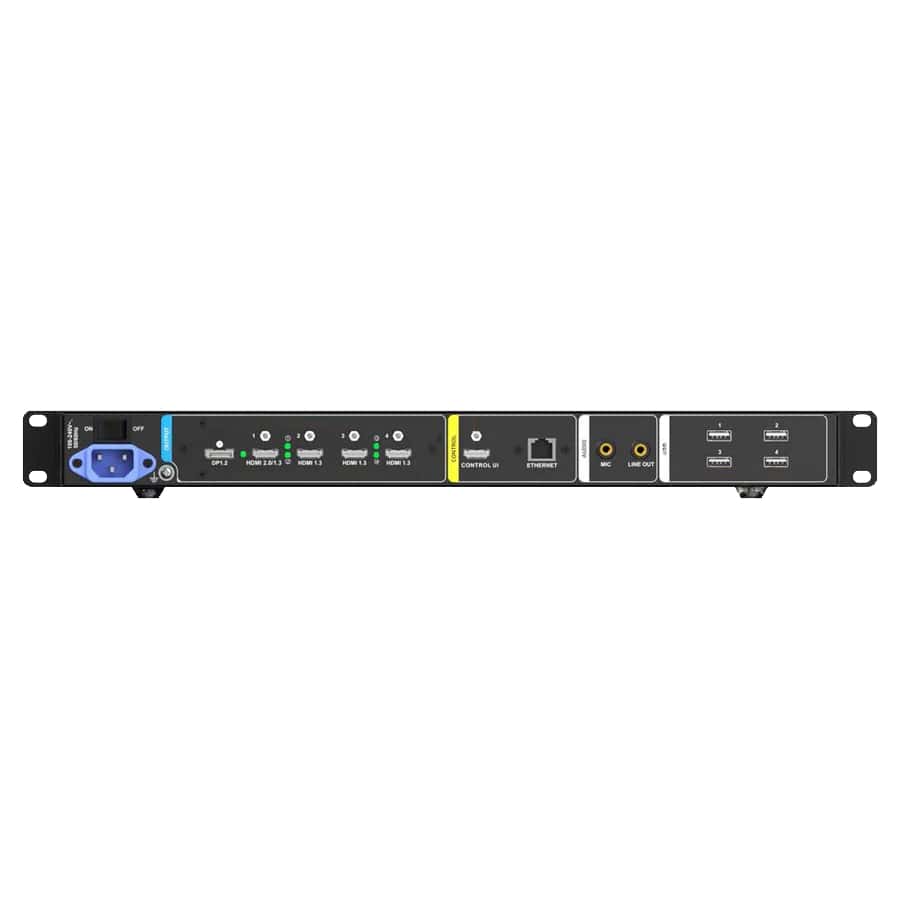

• Multiple Output Connectors:
  • 1× DP 1.2 output
  • 4× HDMI 1.3 outputs (mirroring DP 1.2 content)
  • 1× HDMI 2.0 output (mirroring DP 1.2 content)


• Advanced Media Playback:
  • Simultaneous playback of up to 4 layers and 1 audio track.
  • Supports various media types, including videos, pictures, PowerPoint files, audio, NDI sources, web pages, streaming media, and text.
  • Visualized program arrangement and management for intuitive control.


• Flexible Display Configuration:
  • A single output can be split into up to 1024 partitions, allowing for quick mapping settings and ultra-wide screen configurations.


• User-Friendly Control:
  • Comes with built-in Kompass FX1 software for simplified stage display management.
  • Features like one-click fade-to-black (FTB) and auto startup of built-in software enhance user experience.

Physical Specifications:

• Dimensions: 482.6 mm × 43.6 mm × 400 mm
• Weight: Approximately 5.2 kg
• Power Supply: AC 100–240 V, 50/60 Hz
• Operating Temperature: 0°C to 45°C
• Humidity: 0% to 80% RH, non-condensing
