NovaStar CVT310

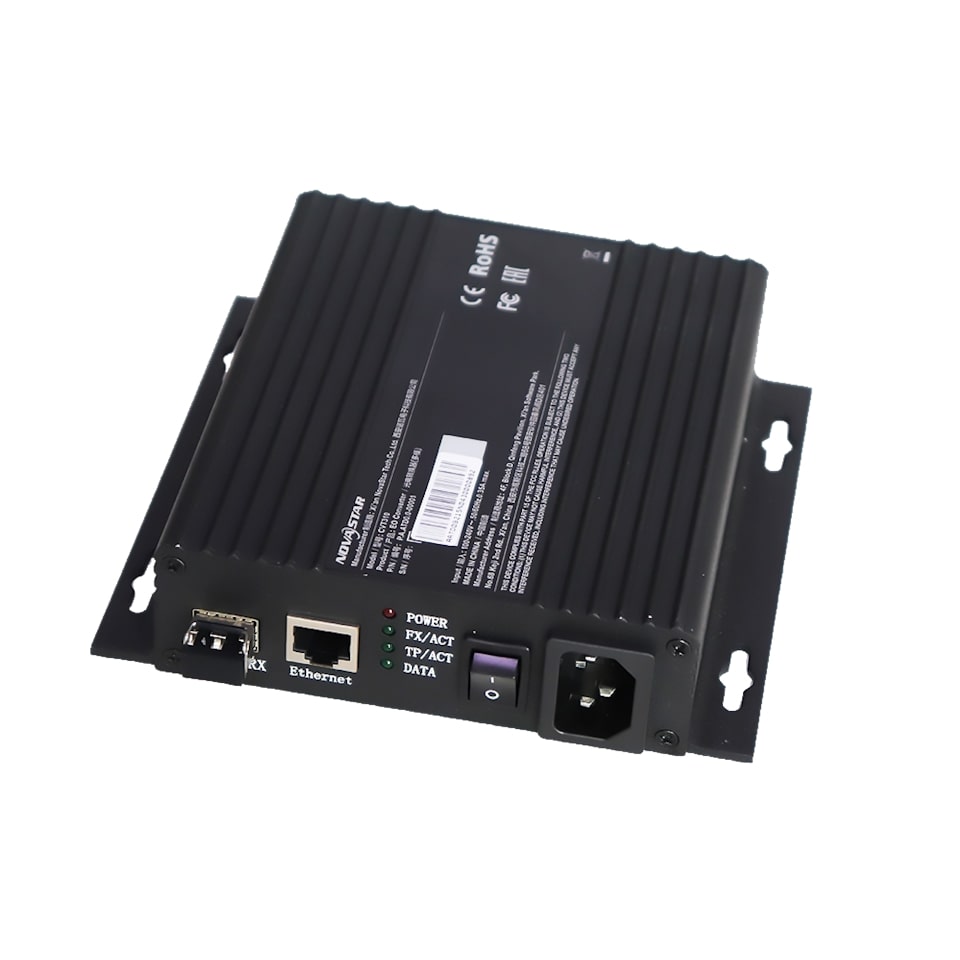

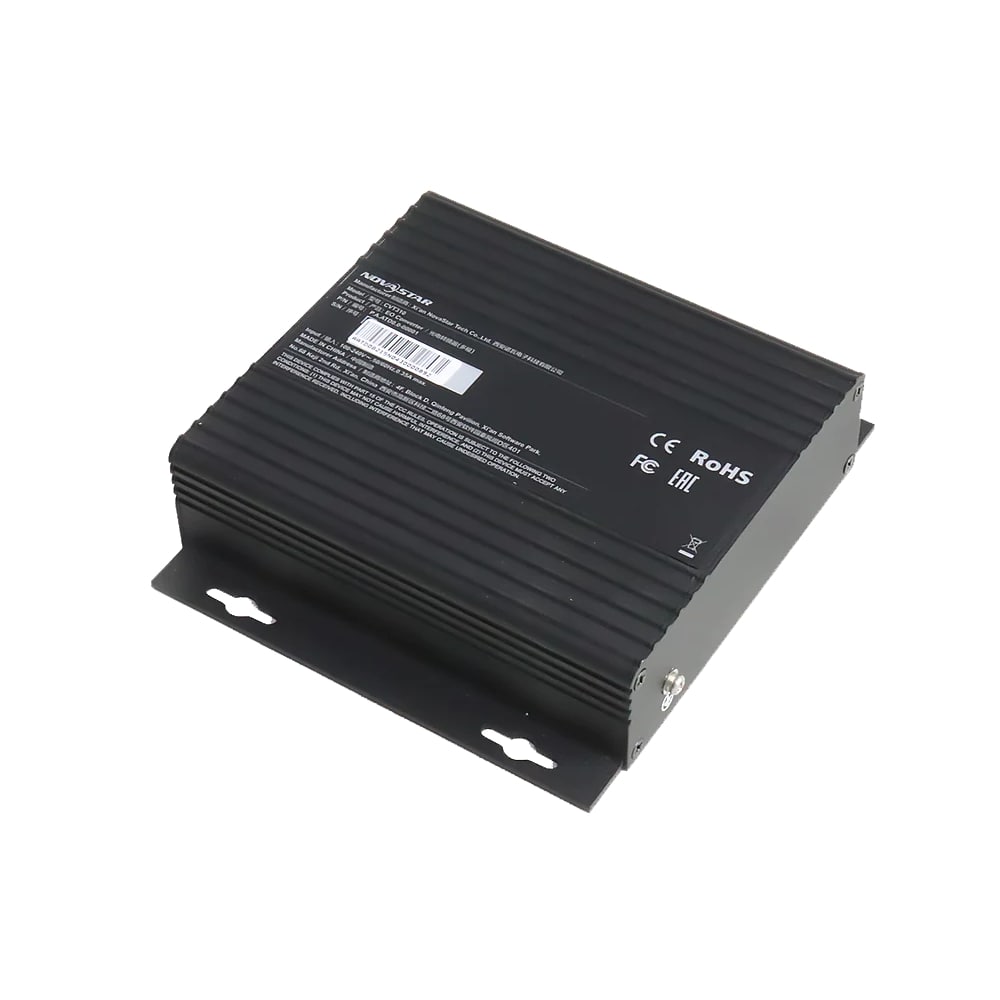

The NovaStar CVT310 is a fiber converter designed to facilitate the conversion between optical and electrical signals, enabling seamless connections between video sources and LED displays. This device is particularly useful for long-distance data transmission, supporting distances up to 300 meters using multi-mode dual-core LC optical fiber.

Key Features:

• Interfaces:
  • 1 Gigabit Ethernet port
  • 1 multi-mode twin-core LC optical port


• Optical Port Specifications:
  • Data rate: 1.25 Gb/s
  • Wavelength: 850 nm
  • Transmission distance: Up to 300 meters
  • Hot-pluggable design

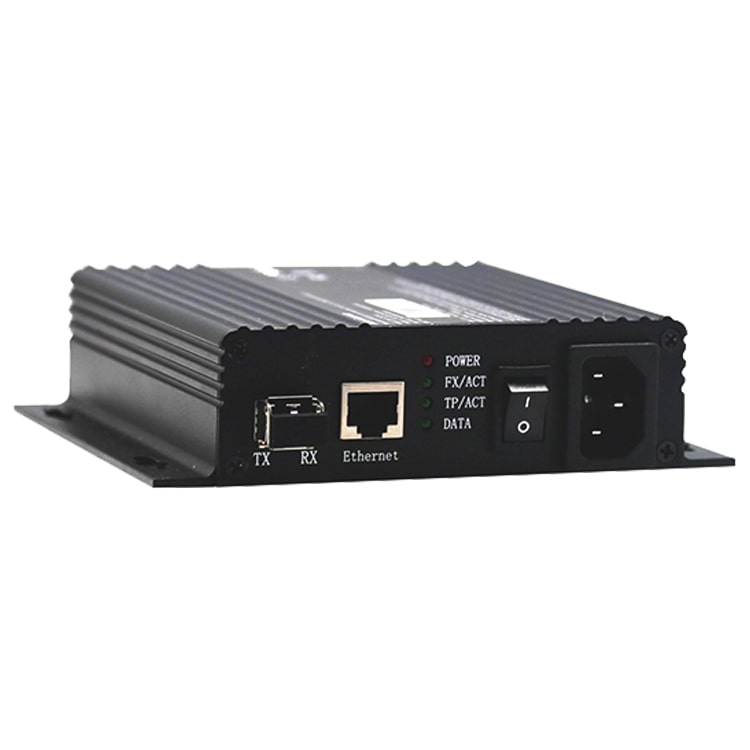

• Indicators:
  • POWER: Indicates normal power supply when lit
  • FX/ACT: Indicates normal optical port connection when lit
  • TP/ACT: Indicates normal Ethernet port connection when lit
  • DATA: Flashes when data is being transmitted through the Ethernet port

Specifications:

• Power Supply: AC 100–240 V, 50/60 Hz
• Power Consumption: Approximately 3.5 W
• Dimensions: 149.0 mm × 135.0 mm × 38.0 mm
• Weight: 0.53 kg
• Operating Temperature: –20°C to +70°C
• Operating Humidity: 10% RH to 90% RH, non-condensing

The CVT310 is designed for plug-and-play operation, requiring no additional drivers for immediate use upon connection. It's important to note that two units are typically required for a complete transmission system: one serving as the transmitter and the other as the receiver.
